Product Specification

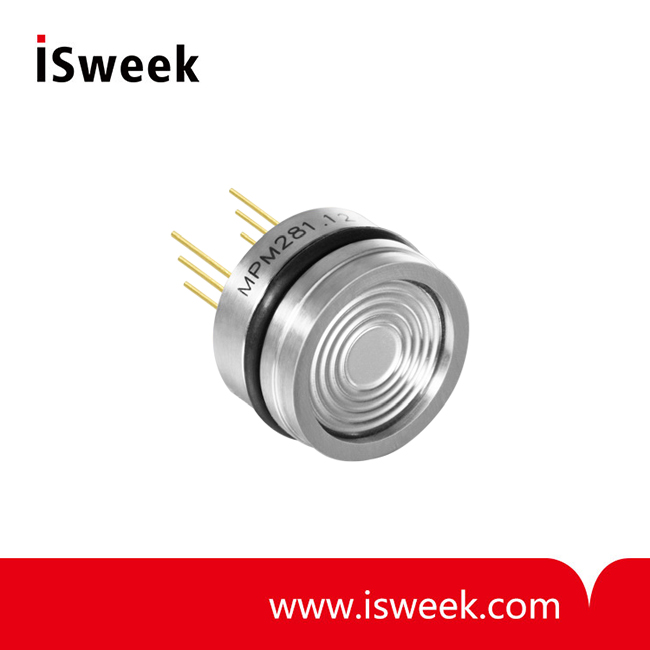

MPM281 High Stable Pressure Sensor Introduction：

    MPM281 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die, stainless steel 316L housing with diameter Ф19mm. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal. It can be filled with Fluorinated Oil. Because of its good biological inertness, it can dissolve a large amount of breathing gas, and can be quickly discharged from the human body. It is more suitable for the pressure measurement of the oxygen in medical applications.

    MPM281 pressure sensor is inspected and screened on automatic production line, testing and checking time after time strictly. It is widely used for various pressure measurement fields.

MPM281 High Stable Pressure Sensor Environment Condition：

? Shock: no change at 10gRMS, (20~2000)Hz

? Impact: 100g,11ms

? Media compatibility: the gas or liquid which is compatible with stainless steel and Viton

MPM281 High Stable Pressure Sensor Electric Features：

? Pressure range 0~20kPa…100MPa

? Gauge, absolute, sealed gauge

? Constant current / constant voltage power supply

? Silicone oil or Fluorinated Oil filled, enable to measure various media

? Φ19mm standard OEM pressure sensor

? Full stainless steel 316L

? Wide temperature compensation -10℃ ~80℃

? Long-term stability±0.1%FS/year

MPM281 High Stable Pressure Sensor Application：

? Industrial process control

? Level measurement

? Gas, liquid pressure measurement

? Pressure checking meter

? Pressure calibrator

? Liquid pressure system and switch

? Cooling equipment and air conditioning system

? Aviation and navigation inspection

MPM281 High Stable Pressure Sensor Specification：
