High Resolution Digital Pressure Sensor Module - MS5806-02BA

? High resolution module, 20cm
? Fast conversion down to 1 ms
? Low power, 1 μA (standby < 0.15 μA)
? 24 bit ΔΣ ADC
? Supply voltage 1.8 to 3.6 V
? Operating range: 300 to 1100 mbar, -40 to +85°C
? Extended Pressure Range: 10 to 2000mbar
? I2C or SPI interface (Mode 0, 3)

Model Number: MS5806-02BA
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

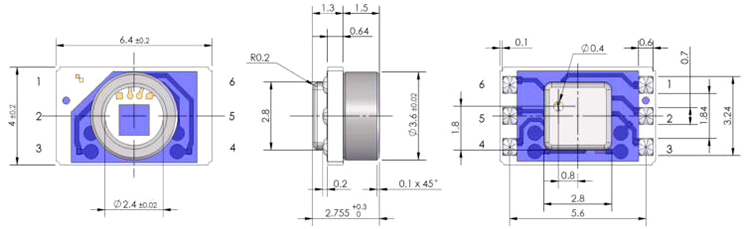

Product Specification

MS5806-02BA
Miniature Altimeter Module

MS5806-02BA High Resolution Digital Pressure Sensor Module Description
The MS5806-02BA is a new generation of high resolution altimeter sensors with SPI and I2C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 20cm. The sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.

The MS5806-02BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. The gel protection and antimagnetic stainless steel cap allows the use in 100m water resistant altimeter/compass watches.

This new sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which has been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

MS5806-02BA High Resolution Digital Pressure Sensor Module Features
? High resolution module, 20cm
? Fast conversion down to 1ms
? Low power, 1μA (standby < 0.15μA)
? Integrated digital pressure sensor (24 bit ΔΣ ADC)
? Supply voltage 1.8 to 3.6V
? Operating range: 300 to 1100 mbar, -40 to +85 °C
? Extended Pressure Range: 10 to 2000mbar
? I2C or SPI interface (Mode 0, 3)
? No external components (Internal oscillator)
? Excellent long term stability
? Hermetically sealable for outdoor devices

MS5806-02BA High Resolution Digital Pressure Sensor Module Applications
? Mobile altimeter / barometer systems
? Bike computers
? Adventure or multi-mode watches
? Variometers
? Dataloggers

MS5806-02BA High Resolution Digital Pressure Sensor Module Technical Data

Sensor Performances (V_DD = 3 V)
Pressure	Min	Typ	Max	Unit
Range	10		2000	mbar
ADC	24			bit
Resolution (1)	0.13 / 0.084 / 0.054 / 0.036 / 0.024			mbar
Accuracy 25°C, 750 to 1100 mbar	-1.5		+1.5	mbar
Accuracy -20°C to + 85°C, 300 to 1100 mbar (2)	-2.5		+2.5	mbar
Response time	0.5 / 1.1 / 2.1 / 4.1 / 8.22			ms
Long term stability		+1		mbar/yr
Temperature	Min	Typ	Max	Unit
Range	-40		+85	°C
Resolution		<0.01		°C
Accuracy at 25°C	-0.8		+0.8	°C
Notes: (1) Oversampling Ratio: 256 / 512 / 1024 / 2048 / 4096 (2) With autozero at one pressure point
