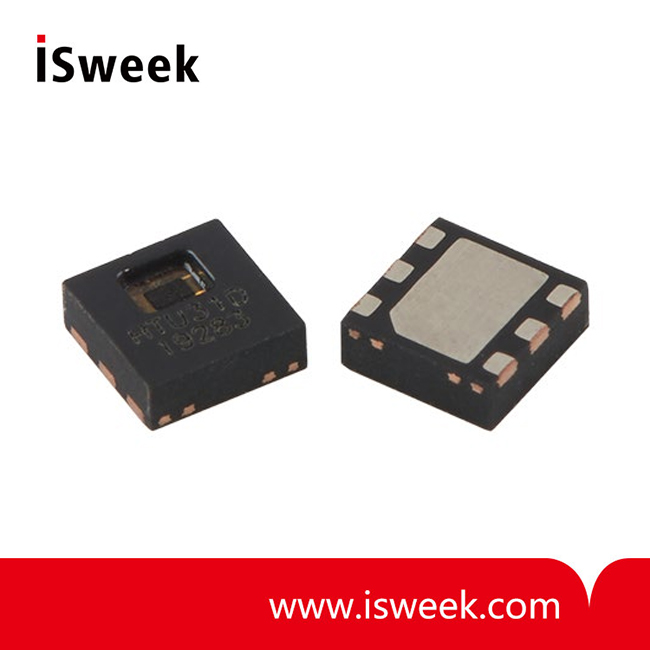

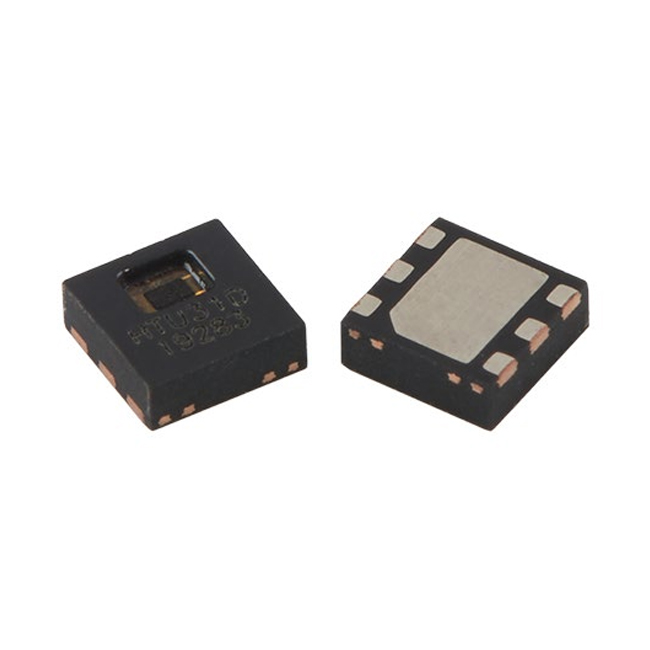

High Accuracy RH/T Sensor - HTU31V
? High Reliability and Robustness
? Fast Recovery after Saturation
? Fully Compatible with Reflow Process
? Fully Interchangeable without Calibration
? Serial Individual Marking for Traceability
? Lead Free
? Low Power Consumption
- Model Number: HTU31V
- Data Sheet:
- Quantity:
- - +
Product Specification
General Description：
The HTU31 is one of the smallest and most accurate humidity sensors on the market. TE Connectivity precision engineering and 20+ years of experience in humidity and temperature combination sensors, enabled this new product with fast response time, precision measurement, low hysteresis, robustness to reflow assembly process and sustained performance even when exposed to extreme temperature [-40°to125℃]and humidity [0%RH to 100%RH] environments.
HTU31 humidity & temperature sensor includes both digital (D) and analog (V) versions and combines multiple functions with an application-friendly operating supply voltage range from 3V to 5.5V.
HTU31 sensor is available in small and large volumes to meet the everchanging demands of our customers.
Features：
? High Reliability and Robustness
? Fast Recovery after Saturation
? Fully Compatible with Reflow Process
? Fully Interchangeable without Calibration
? Serial Individual Marking for Traceability
? Lead Free
? Low Power Consumption
Applications：
? Home Appliance
? Medical
? Printers
? Humidifiers
? Automotive
? Meteorology
? Environmental Monitoring & Trackers
Performance Specifications：
Relative Humidity Specifications
Vdd = 5V 25℃
|
Characteristics |
Condition |
Value |
Units |
Notes /Conditions |
|
Humidity Operating Range |
Max1 |
0 to 100 |
%RH |
|
|
Relative Humidity Accuracy |
Typical |
±2 |
%RH |
Figure 1 Humidity Sensor Rating @25℃ |
|
Resolution |
Typical |
0.01 |
%RH |
Table 11 Humidity and Temperature Conversion Parameters |
|
Hysteresis |
@25℃ |
±0.7 |
%RH |
|
|
Response Time2 |
τ63% |
5 |
s |
|
|
Recovery Time after Condensation3 |
Typical |
10 |
s |
|
|
Long Term Drift4 |
Typical |
<0.25 |
%RH / year |
|
Table 1 Humidity Specifications
Temperature Specifications
Vdd = 5V 25℃
|
Characteristics |
Condition |
Value |
Units |
Notes /Conditions |
|
Humidity Operating Range |
|
-40 to 125 |
℃ |
|
|
Temperature Accuracy |
Typical |
±0.2 |
℃ |
Figure 2 Temperature Sensor Rating |
|
Resolution |
Typical |
0.016 |
℃ |
Table 11 Humidity and Temperature Conversion Parameters |
|
Response Time2 |
τ63% |
10 |
s |
|
|
Long Term Drift |
Typical |
0.04 |
℃ / year |
|
Table 2 Temperature Specifications
1 Cf. Figure 3 Humidity and Temperature Operating Range
2 With 1m.s-1 air flow
3 Measured according to AFNOR standard NFX 15-113, with 3 m.s-1 air flow
4 Typical application in regular environmental variation within optimum measurement range

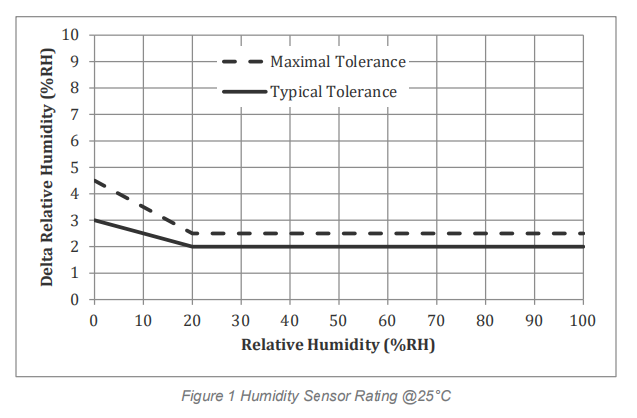

Humidity Sensor Rating
Temperature Sensor Rating
