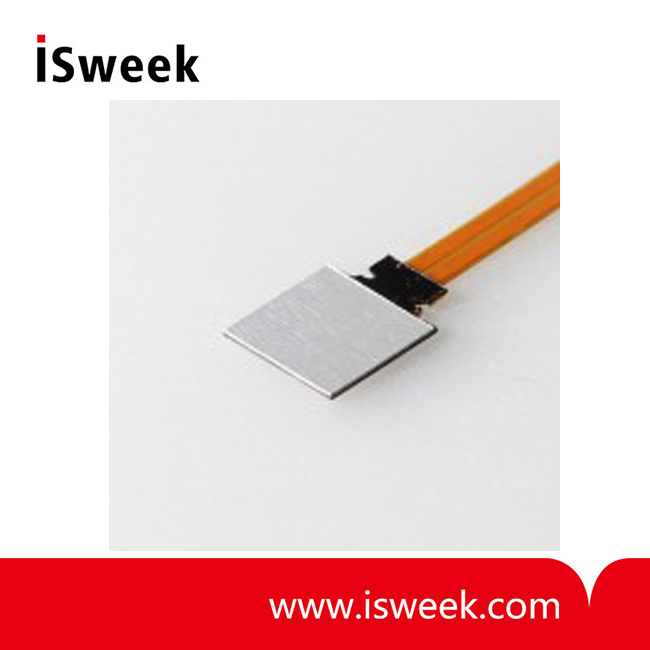

Heat Flux Sensor - gSKIN-XP
? ?Ultra-high resolution of thermal energies and temperature differences.
? ?Low invasiveness and thickness.
? ?Models with connector compatible with all gSKIN?DLOG Data Loggers.
? ?All sensors with conductive heat flux calibration cohering to ISO 8301.
- Model Number: gSKIN-XP
- Data Sheet:
- Quantity:
- - +
Product Specification
1.Heat Flux Sensor - gSKIN-XP Descriprion:
Our medium-sized heat flux sensor, with superior quality, accuracy, and responsiveness. Available both without and with connector.
2.Heat Flux Sensor - gSKIN-XP Features:
? Ultra-high resolution of thermal energies and temperature differences.
? Low invasiveness and thickness.
? Models with connector compatible with all gSKIN?DLOG Data Loggers.
? All sensors with conductive heat flux calibration cohering to ISO 8301.
3.Heat Flux Sensor - gSKIN-XP Applications:
R&D, thermal optimization, energy efficiency, industrial monitoring of thermal properties.
4.Heat Flux Sensor - gSKIN-XP Technical parameters:
|
Product |
|
gSKIN XP |
|
Detector Type |
|
Thermoelectric |
|
Sensing Dimensions (mm) |
|
10.0 x 10.0 x 0.5 |
|
Heat Flux Range Min / Max [kW/m2] |
|
-150 / 150 |
|
Noise Equivalent Heat Flux per area [W/m2] / absolute [μW] |
|
0.073 / 7.3 (experimentally evaluated values under optimal steady state conditions). |
|
Temperature Difference Resolution [μK] |
|
～30 |
|
Surface Material (Sensing Area) |
|
Aluminum |
|
Response Time (0-95%) [s] |
|
0.7 (Refers to the heat flux measurement). |
|
Min. /Avg. Sensitivity (S) [μV/(W/m2)] |
|
10.0/20.0 (only a reference point) |
|
Max. Compressive Force when clamped [kgf] |
|
< 10 |
|
Electrical Resistance [Ohm] |
|
< 150 |
|
Thermal Conductivity [W/(m*K)] |
|
～1.2 |
|
Linearity with Power [±%] |
|
1 |
|
Operating Temperature Range Min/Max [°C] |
|
-50 / 150 |
|
Calibration Accuracy [±%] |
|
3 |
|
Calibration Temperature Range Min/Max [°C] |
|
-30 / 70 (Conductive heat flux calibration cohering to the ISO8301 standard with mean temperature of 22.5°C). |
|
Flexprint Length (f) [cm] |
|
5 |
|
Temperature Dependence of S [%/°C] |
|
0.25 (The sensitivity increases (decreases) as the temperature goes above (below) 22.5°C). |
|
Homogeneity [±%] |
|
1 (Position dependent signal change across sensing area). |
|
Heat Flux Resolution per area [W/m2] with gSKIN? DLOG / absolute [μW]: |
|
0.09 / 9.0 (Guaranteed minimum heat flux resolution using the gSKIN? DLOG-4219). |
