Product Specification

Features:

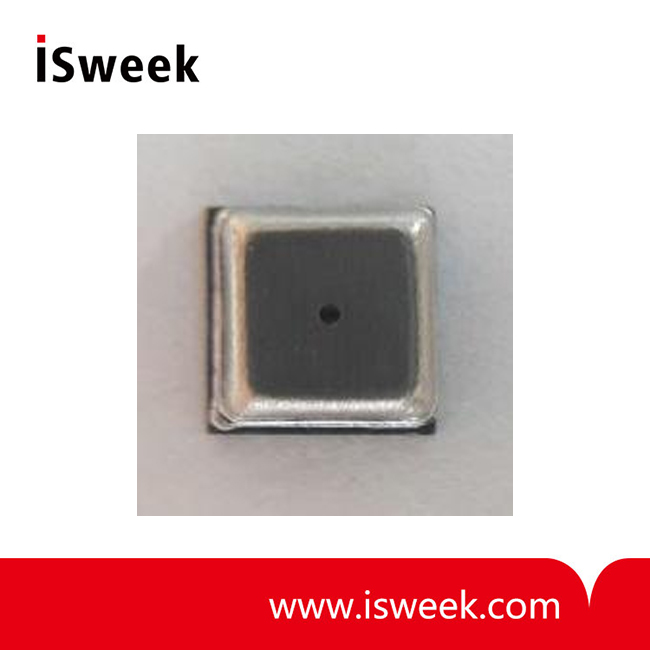

    The TED110 is metallic oxide semi-conductor type MEMS gas sensor for monitoring indoor air quality. It is the smallest ultra-low power multi-gas sensor with high sensitivity and containing ASIC. Its design containing pre-installed software and the specific algorithms enable to detect multi-gas and measure the temperature. This sensor is consisted of nano-particle metal oxide sensing layer, micro heater, micro thickness membrane and Read-out IC: these components, together, provide high sensitivity, low-power consumption, fast response, small size and long-term stability.

    TED110 is a multi-gas sensor for monitoring Carbon monoxide(CO), combustible gases and a volatile organic compounds(VOCs). Additionally, it can be used as an equivalent carbon dioxide(eCO2) sensor.

Advantages:

? 1um thickness low stress Si3N4 Membrane wafer

? High Sensitivity Thin film Sensing layer (ΔR/R0=20000% at 20ppm NO2)

? Various gas (VOCs, CO, EtOH, CH4, NO2, Toluene, H2S etc) detect

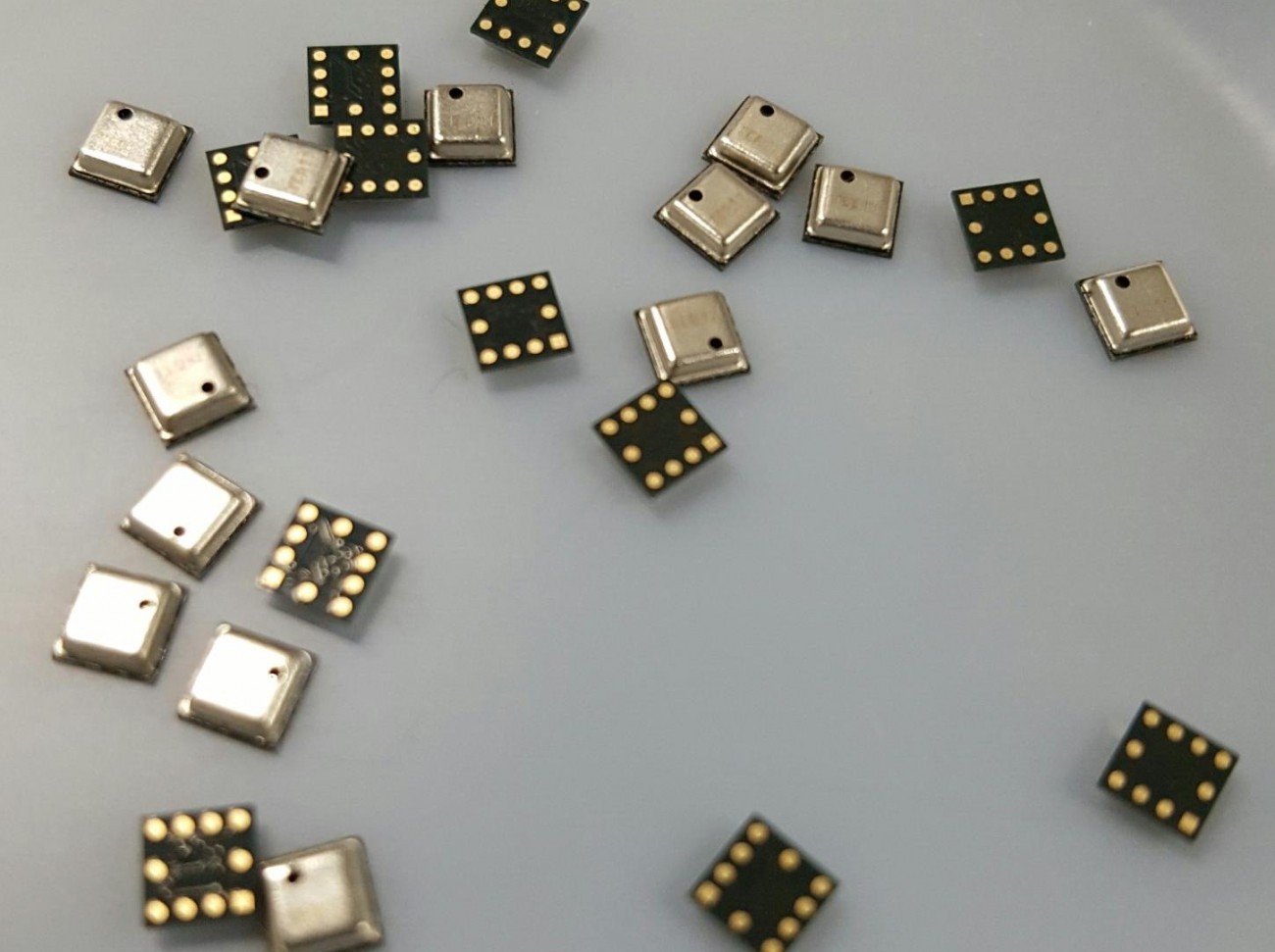

? Small Die Size (0.6*0.6*0.3 mm) and Small SMP packaging (3 x 3 x 1 mm) with ROIC

? Self-Temperature compensation with ASIC / Module

? Long-term stability

? Fast Response time(<10sec) / Recovery time(<50sec)

? Reasonable price

? Low(15mW) power consumption

? Various Sensor packaging: Metal(TO 45), SMP packaging

? Output: I2C Digital Output

Applications:

? Air pollution monitoring

? Mobile smart device (phones, tablets, watches. etc)

? Air quality monitoring (indoor, vehicle, parking, loT etc.)

? Ventilation (house, class room, industry and office etc.)

? Gas leak detection

? Breath checker

? Air conditioner, Hood, Air cleaner, Boiler

? Early fire detection

Specifications:

* NOTICE : The contents of this manual are subject to change without prior notice.
