Product Specification

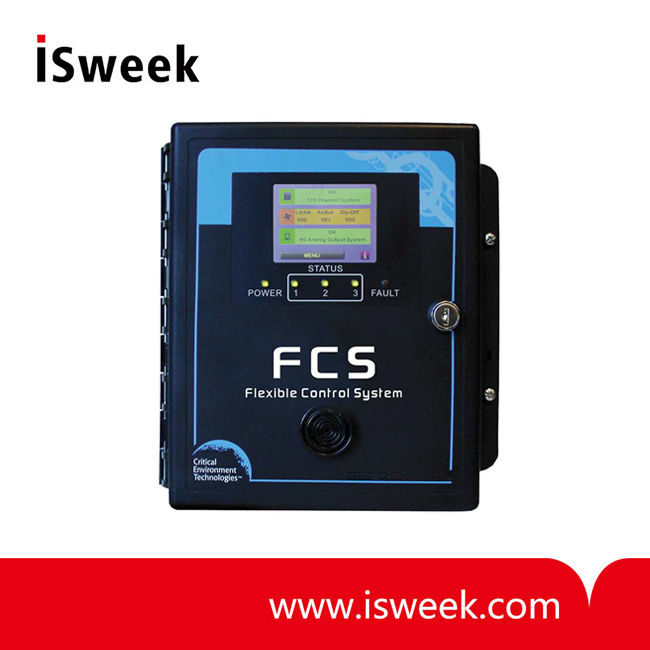

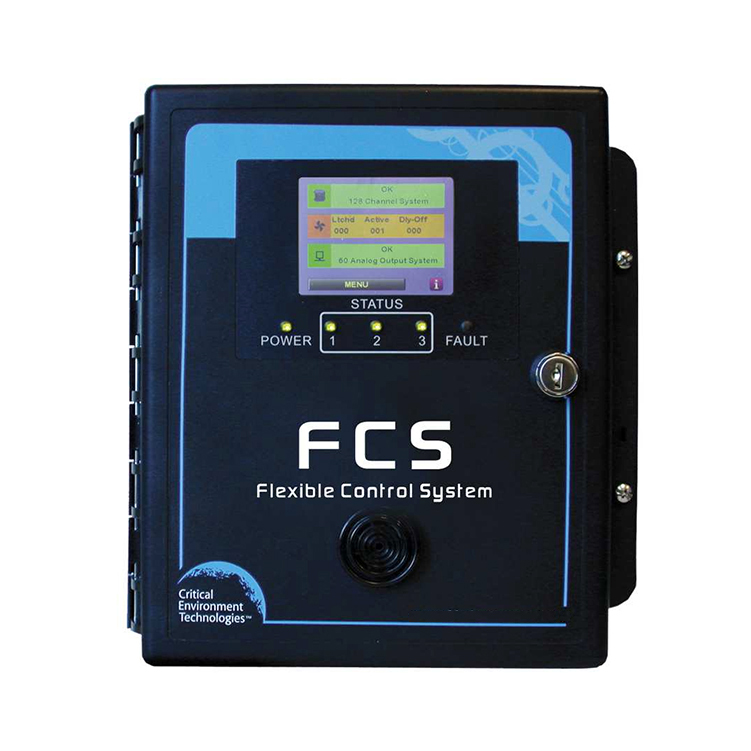

FCS Flexible Control System?Description
The FCS Flexible Control System is a sophisticated, high performance controller that offers up to 128 gas channel configurations for monitoring toxic, combustible or refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications.

The FCS is designed to accept inputs from digital and/or analog transmitters and/or Peripheral Devices (in various combinations), using Modbus^? RS-485 or 4-20 mA analog input. The FCS is available in two models: the FCS-M with Modbus^? RS-485 output or the FCS-B with BACnet^? MS/TP output for communicating with a Building Automation System (BAS).

Standard features include, 4 configurable SPDT dry contact relays with field configurable time delays and trigger levels, a full colour LCD resistive touch screen with LED panel indicating configurable channel alarm status, relay status and fault conditions, extensive menu system with password protection, enhanced logic control, priorities/zoning capabilities, a USB port for firmware upgrades, data logging and a door-mounted audible alarm.

FCS Flexible Control System?Key Features
? Up to 128 channels of gas readings
? Modbus^? RS-485 LAN communications for controlling Peripherals
? Modbus^? RS-485 (FCS-M) or BACnet? MS/TP (FCS-B) WAN output for communicating with a BAS
? Four SPDT dry contact relays
? Configurable internal analog inputs and/or analog outputs (optional)
? Graphic, full colour, resistive touch LCD display with LED indicators
? Configurable to comply with California Title-24 Building Energy Efficiency Standards
? USB port for firmware upgrades and data logging
? RoHS compliant circuit boards
? Standard water / dust tight, corrosion resistant enclosure (drip proof); with optional lockable door. IP54 rating with door mounted, water tight buzzer installed.

FCS Flexible Control System?Applications
? Large Parking Facilities
? Indoor Recreation Facilities (ice arena, swimming pool)
? Food Processing Plants
? Cold Storage and Freezer Rooms
? Chemical Storage Rooms
? ... and many more
