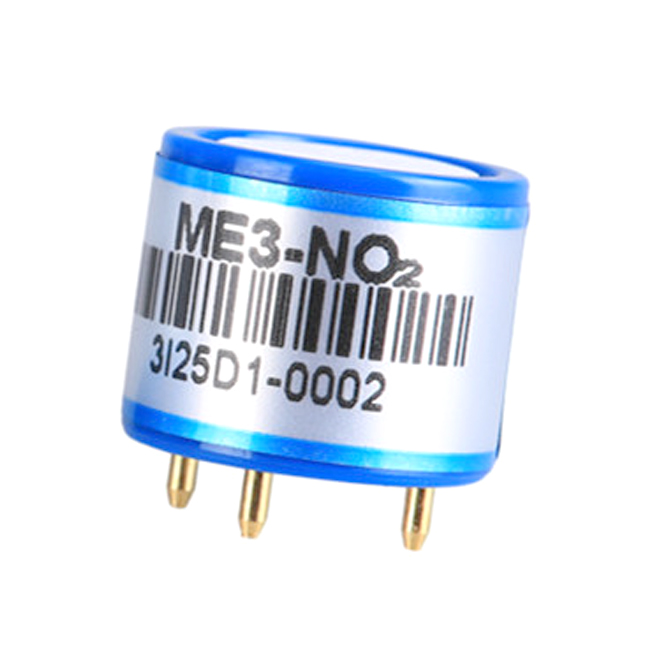

Electrochemical Nitrogen Dioxide Sensor (NO2 Sensor) - ME3-NO2

? Detection gas: NO2
? Detection Range: 0-20ppm??
? Max detecting concentration: 150ppm
? Sensitivity: (0.78±0.42) μA/ppm
? Resolution ratio: 0.1ppm
? Response Time (t90): <25s
? Repeatability: <2% output value

Model Number: ME3-NO2
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ME3-NO2 Nitrogen Dioxide Sensor (NO2 Sensor) Principle Introduction
ME3-NO2 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

ME3-NO2 Nitrogen Dioxide Sensor (NO2 Sensor) Features
? Low consumption
? High precision
? High sensitivity
? Wide linear range
? Good anti-interference ability
? Excellent repeatability and stability

ME3-NO2 Nitrogen Dioxide Sensor (NO2 Sensor) Application
Widely used in industrial and environmental protection fields

ME3-NO2 Nitrogen Dioxide Sensor (NO2 Sensor) Technical Parameter

Item	Parameter
Detection gas	NO2
Measurement Range	0 ~ 20ppm
Max detecting concentration	150ppm
Sensitivity	(0.78±0.42) μA/ppm
Resolution ratio	0.1ppm
Response time (T90)	<25s
Bias voltage	0mV
Load resistance (recommend)	10Ω
Repeatability	<2% output value
Stability (／month)	<2%
Output Linearity	linear
Zero drift (-20°C ~ 40°C)	0.2ppm
Storage temperature	-20°C ~ 50°C
Storage Humidity	15% ~ 90%RH
Pressure range (kPa)	90 - 110
Anticipated using life	2 years (In air)
