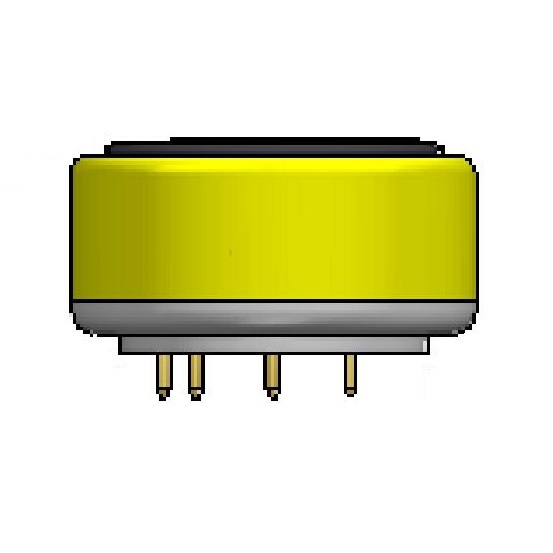

Electrochemical Hydrogen Gas Sensor (H2 Sensor) - 7HYT CiTiceL

? Operating Principle: 3-electrode electrochemical
? Measurement Range: 0-1000 ppm H2
? Maximum Overload: 2000 ppm H2
? Filter: To reduce CO levels
? Sensitivity: 0.03 ± 0.01 μA/ppm
? Response Time (T90): <85 Seconds
? Resolution: 2 ppm
? Repeatability: 2% of signal
? Linearity: Linear

Model Number: 7HYT CiTiceL
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

7HYT CiTiceL Hydrogen Sensor (H2 Sensor) Key Features & Benefits:
? Robust, industry standard 7-Series packaging
? Compact Size

7HYT CiTiceL Hydrogen Sensor (H2 Sensor) Technical Specifications

MEASUREMENT
Operating Principle	3-electrode electrochemical
Measurement Range	0-1000 ppm H2
Maximum Overload	2000 ppm H2
Filter	To reduce CO levels
Sensitivity*	0.03 ± 0.01 μA/ppm
Response Time (T90)*	<85 Seconds
Baseline Offset (clean air)*	0 to -25 ppm H2 equivalent
Zero Shift (+20°C to +40°C)	< -35 ppm H2 equivalent
Resolution	2 ppm (when used with recommended electronics)
Repeatability	2% of signal
Linearity	Linear

ELECTRICAL
Recommended Load Resistor	10 ?
Bias Voltage	Not Required

MECHANICAL
Weight	12 g
Housing Material:
Cap	Polycarbonate
Body	ABS
Orientation	Any

ENVIRONMENTAL
Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 20°C
Operating Pressure Range	Atmospheric ± 10%
Pressure Coefficient	0.009 ± 0.003 % signal/mBar
Operating Humidity Range	15 - 90% RH non-condensing

LIFETIME
Long Term Sensitivity Drift	<2% signal loss/month
Expected Operating Life	Two years in air
Storage Life	6 months in CTL container

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

Poisoning
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments and operation.

When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
