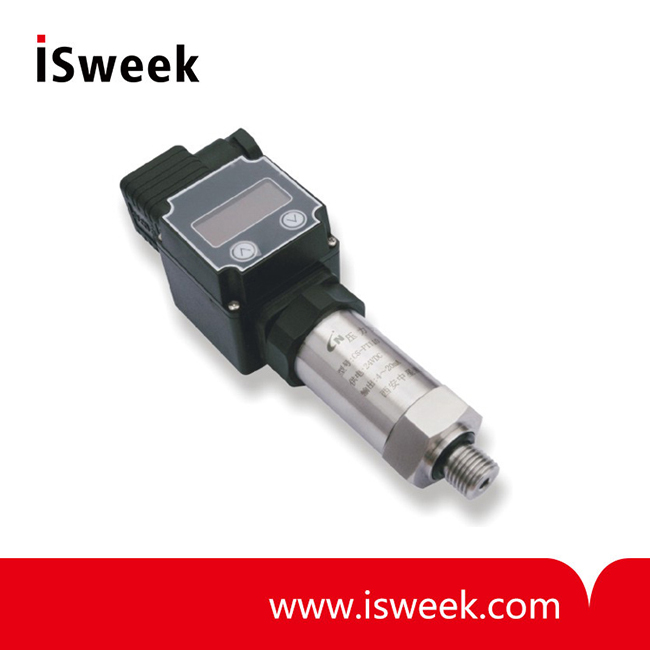

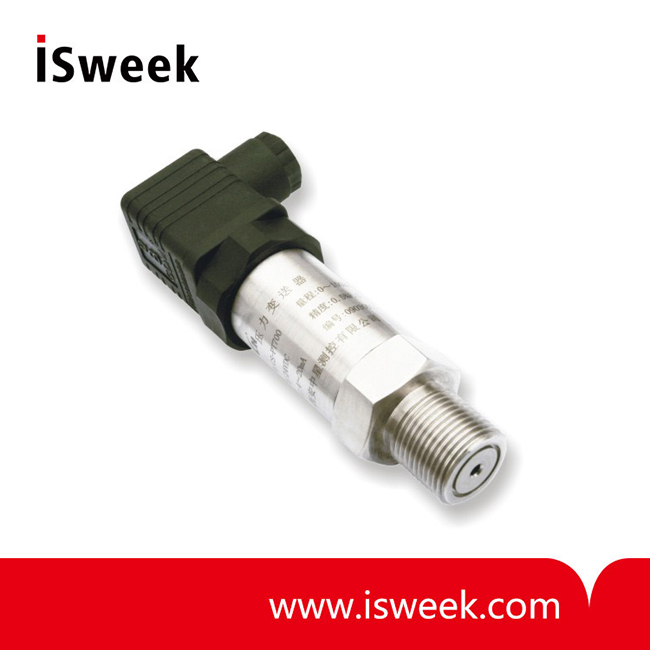

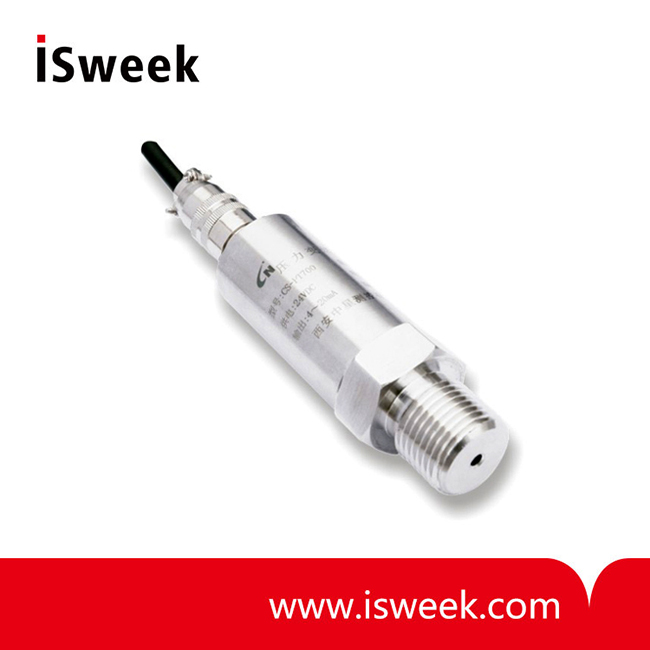

Economical Piezoresistive Pressure Transmitter - CS-PT100 Series

? Measure Range: 0.2Mpa~35MPa
? Accuracy: ±0.5%, 1%
? Stability: Typical 0.25%F.S, Max 0.4%F.S
? Response Time: 10ms?
? Insulation: >100M ?@50V?
? Operate Temperature: -40℃~85°C
? Compensation Temperature: -10℃~70°C
? RoHS approved

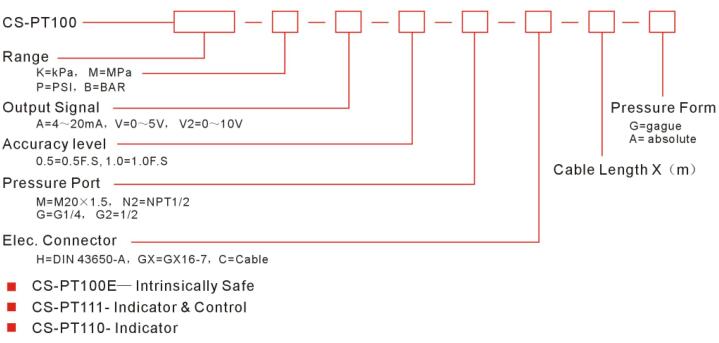

Model Number: CS-PT100 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CS-PT100 Series Economical Piezoresistive Pressure Transmitter

CS-PT100 Series Pressure Transmitter Feature
? ±0.5, ±1%FS accuracy
? OEM doable
? Diffused silicon sensor
? Multiple pressure ranges and signal output
? Multiple connectors and ports
? Nonpolar two-wire current output
? AC/DC voltage powered
? RoHS approved

CS-PT100 Series Pressure Transmitter Application
? Gas dispenser
? Refrigerator
? Hydraulic control
? Pressure instrument
? Automatic detection system
? Energy and water treatment
? Real-time custody for oil well

CS-PT100 Series Pressure Transmitter Introduction
CS-PT100 series of pressure transmitter are cost effective products featuring mass production and low cost. They are widely used to detect the pressure of gas and liquid like water and nature gas.

The products are made of stainless steel. the pressure sensing elements are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates.

Customized structures and output formats can be designed according to special application requirements, in addition to standards products.

CS-PT100 Series Pressure Transmitter Technical parameters

Parameters	Value			Note
Measure Range	0.2Mpa~35MPa			1MPa≈145PSI
Overload Pressure	2×RP(rated pressure)
Broken Pressure	4×RP(rated pressure)
Accuracy	±0.5%, 1% (PT300 & MARS series have higher accuracy)
Stability	Typical 0.25%F.S, Max 0.4%F.S
Operate Temperature	-40℃~85°C
Compensation Temperature	-10℃~70°C
Media Compatibility	Corrosive medium compatible with Cr18Ni9Ti
Wire	Two-wire	Three-wire
Output Signal	4~20mA	0~5V	0~10V
Power Supply	12~30Vdc	10~30Vdc/ac	12~30Vdc/ac	dc/ac means dc and ac are all usable
Load Resistance	(U-10)/0.02(?)	>20k?
Insulation	>100M ?@50V
Elec. Connect	DIN43650, Shell protection IP65			Hirschmann Plug(S)
	GX16-7, Shell protection IP45			Quick Access Plug(K)
	Wire protection (Five), Shell protection IP68
Pressure Port	M20×1.5, G1/2, G1/4, NPT1/2, NPT1/4
Response Time	10ms
Pressure Form	Gauge G , Absolute A
Compliant	CE，Intrinsically safe E, Explosion-proof D
EMC	EMI: EN50081-1/-2; EMS: EN50082-2
