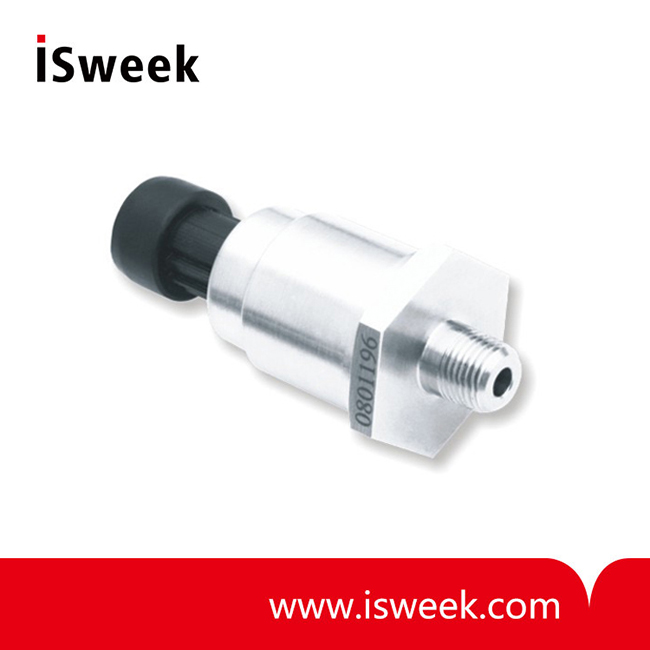

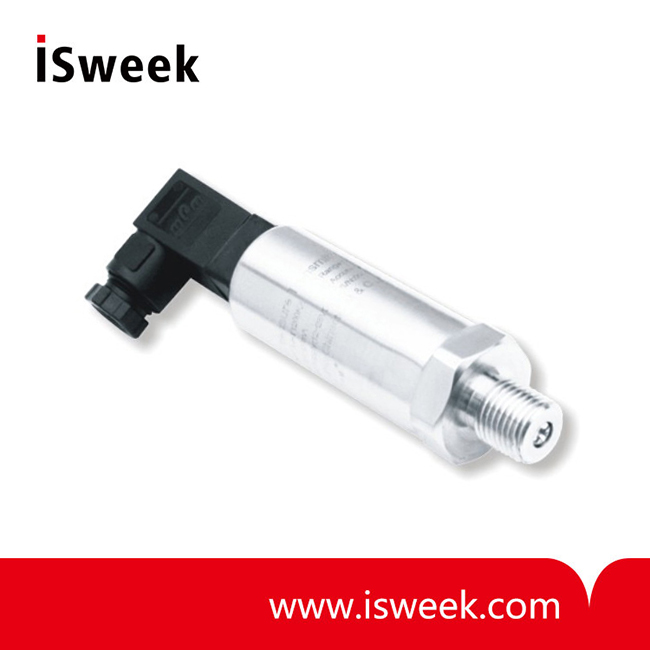

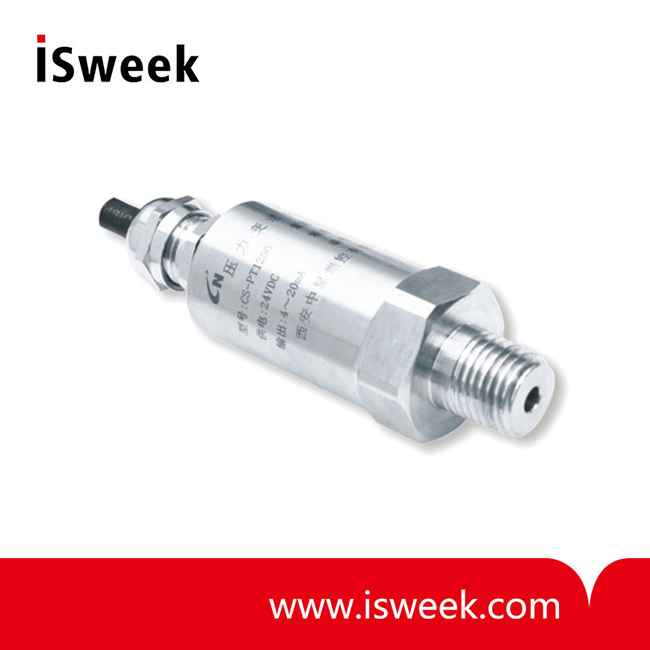

Economical Ceramic Piezo-resistance Pressure Transmitter - CS-PT1200 Series

? Measure range: 2bar……600bar
? Accuracy: ±0.5, ±1%F.S
? Stability: Typical ±0.5%F.S, Max ±1%F.S
? Operate Temperature: -40°C ~100°C
? Compensation Temperature: -10°C ~80°C
? Stock Temperature: -50°C ~125°C
? Insulation: >100M ?@50V
? Response Time: 10ms

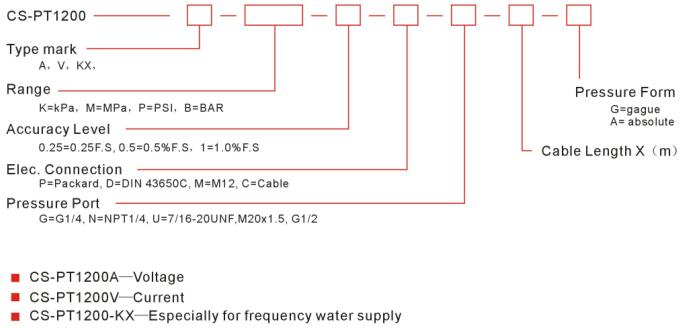

Model Number: CS-PT1200 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CS-PT1200 Series Economical Ceramic Piezo-resistance Pressure Transmitter

CS-PT1200 Series Pressure Transmitter Feature
? ±0.5, ±1%FS accuracy
? High stability, high reliability
? Ceramic sensor from germany
? Digital calibration
? Multiple connection and ports
? Zero point can be shifted 50~100%
? CE approved

CS-PT1200 Series Pressure Transmitter Application
? Compressor
? Building water supply
? Hydraulic control
? Air conditioner
? Auto engine
? Automatic detecting system
? Hydraulic pressure station
? Refrigerator

CS-PT1200 Series Pressure Transmitter Introduction
CS-PT1200 series of pressure transmitter feature high quality, high stability, small size, low weight, compact structure, low cost and mass production. The product are widely used to measure pressure of air compressor, auto engine, air conditioning equipment, etc.

Stainless steel are ideal for industrial environment, pressure sensor element are selected from well known international brands,The product is made of stainless steel and the pressure sensor is selected from well-known brands. Special circuits are adopted to adjust zero value and full range freely. The products have been approved with CE, intrinsically safe, and explosion-proof certificates.

Non-polar two-wire current output and three-wire voltage output are provided.

Products are produced according to military standards of advanced design, perfect technology, scientific management, strict production and quality control and have been sold to over 50 countries.

CS-PT1200 Series Pressure Transmitter Technical parameters

Parameter	Value		Note
Measure range	2bar……600bar		1bar≈100kPa
Overload Pressure	1.5×RP(rated pressure)
Broken Pressure	3×RP(rated pressure)
Accuracy	±0.5, ±1%F.S
Stability	Typical ±0.5%F.S, Max ±1%F.S
Operate Temperature	-40°C ~100°C
Compensation Temperature	-10°C ~80°C
Stock Temperature	-50°C ~125°C
Media Compatibility	Corrosive medium compatible with Cr18Ni9Ti, ceramics
Wire	Two Wire	Three Wire
Output Signal	4~20mA	0.5~4.5V
Power Supply	12~30Vdc	5Vdc/10~30Vdc/ac	dc/ac means dc and ac are all usable
Load Resistance	(U-10)/0.02(?)	>100K?
Insulation	>100M ?@50V
Elec. Connect	Packard, DIN 43650C, DIN72585, M12Seial, Cable
Shell Protection	IP67
Wire Protection	IP67
Elec. Connect	G1/4, NPT1/4, 7/16-20UNF
Response Time	10ms
Pressure Form	Gauge G , Absolute A
Compliant	CE, Intrinsically safe E, Explosion-proof D
EMC	EMI: EN50081-1/-2; EMS: EN50082-2
