Product Specification

Dual-Gas Methane/Carbon Dioxide Infrared sensors CH4/CO2 Overview：

Dual-Gas Methane (CH4) / Carbon Dioxide (CO2) sensors are revolutionary devices for the simultaneous measurement of Methane and Carbon Dioxide in a single sensor package. They acheive this whilst only consuming the power of a single infrared sensor. The sensors also have the additional benefit of a pre-characterised 0-2% Propane measurement range included as standard.

The sensors provide accurate measurement of gas levels using infrared gas sensing techniques. Various versions are available with combinations of ranges up to 100% volume Methane and 5% volume Carbon Dioxide. They consume the power of a single infrared sensor and therefore provide prolonged battery life when used within portable gas detectors.

The Hydrocarbon channel provides simultaneous readings for both High Resolution Methane and Propane.

·  Hydrocarbon Channel Resolution - 0.01% for range 0 to 10% Vol. and 0.1% for range 10% to 100% Vol. (CH4)

·  Carbon Dioxide Channel Resolution - 0.01% Vol. (CO2)

The sensors are part of the 'Platinum' Series and are available in Industrial Ex d IIC Certified, Mining M1 Certified and Non-Certified versions. They are also UL approved.

Low power and EN50271 / SIL1 certified software versions are also available in all combinations.

Dual-Gas Methane/Carbon Dioxide Infrared sensors CH4/CO2 Key features：

Available in 2 power variants, 80mA and 15mA

Measures methane from 0 to 100% volume with a resolution of 0.01 % for 0-5% methane and 0.1% for 5-100% volume

Multiple gas ranges enable the accurate detection of 0-100% vol. methane, 0-2% vol. propane and 0-100% vol. carbon dioxide with one sensor

Measures carbon dioxide from 0 to 5% volume with a resolution of 0.01 % and 0.1% for 5-100% volume

Configuration available specifically for biogas measurement

Offers reduced response times when compared with earlier versions

User configurable using USB powered Premier Configuration Unit

Output can be scaled in % volume or % LEL

Internal Flash memory allowing sensor firmware updates via configuration unit

Enhanced EMC protection

Suitable Applications

Oil & Gas industry、 Mining、Industrial、Energy

Transportation、Landfill monitoringMedical

Ordering Details

In order to completely specify the type of sensor that is required, the customer needs to provide the

following information (more information available on TDS0052 Platinum Sensor Ordering Codes):

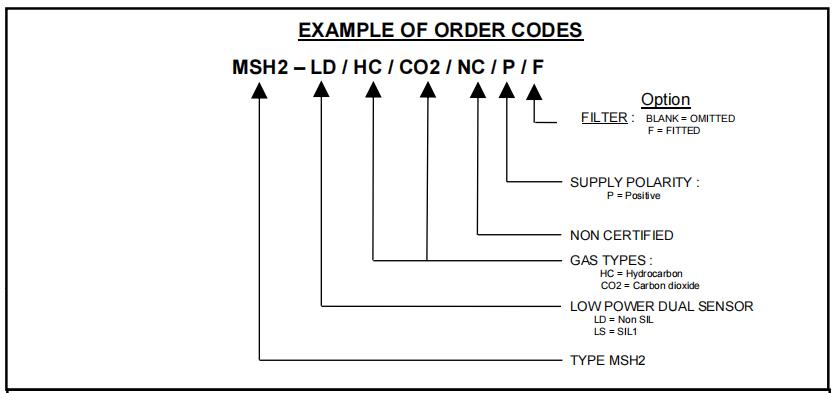

? An Order Code (see below) that specifies the sensors’ basic physical and electrical

characteristics.

? The sensor configuration requirements, including the required gas measurement ranges.
