Product Specification

MS6513 / MS6514 - Digital Thermometer

This is a digital thermometer uses a thermocouple with a microprocessor as the temperature sensor. It Suitable for various thermocouples, such as K, J, T, E, R, S, N. It also can show results with °C, °F, and K (Kelvin).With Maximum, minimum and average value measurement function ...etc.

MS6513/MS6514 Digital Thermometer Product Overview
This digital thermometer uses a thermocouple with microprocessor as the temperature sensor. It has the following features:
? Suitable for various thermocouples, such as K, J, T, E, R, S, N
? It can show results with °C, °F and K (Kelvin)
? Maximum, minimum and average value measurement
? Data hold
? Thermocouple deviation compensation
? Relative time display
? Automatic power-off (automatic power-off time can be set by users)
? Self-calibration (please read "User Self-calibration" section carefully before using this function)
? Automatically and manually save data
? USB port
? Dual-line input (T1, T2) (MS6514)

MS6513/MS6514 Digital Thermometer Features
? Auto Power Off
? Data Logging 1000 groups
? Data Hold
? MAX/MIN/AVG
? Memory save data
? USB interface
? Low Battery Display

MS6513/MS6514 Digital Thermometer General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size: 190mm x 89mm x 42mm / 7.5" x 3.5" x 1.7"
? Product Weight: 350g / 0.8lb
? Certificate: CE / ETL / RoHS

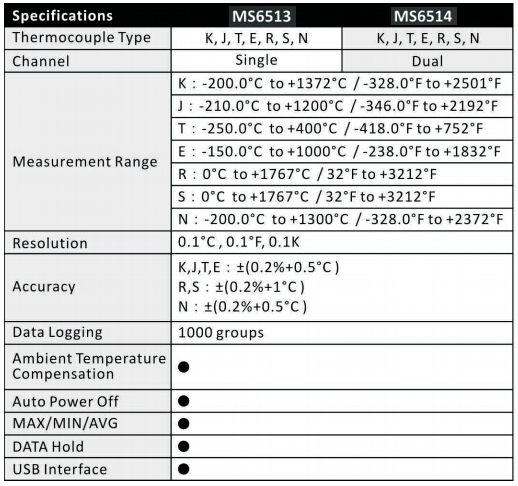

MS6513/MS6514 Digital Thermometer Specifications
