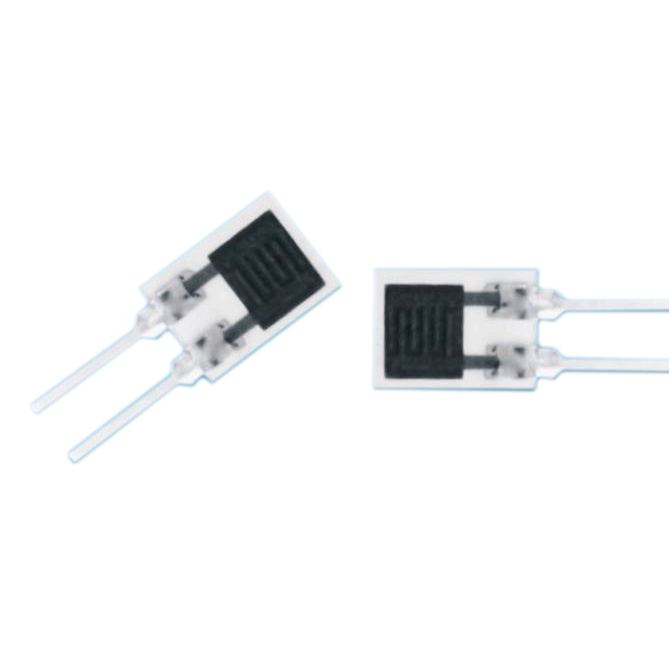

Dewing Sensor - HDS10

? Power supply voltage： ?0.8V DC (safety voltage)?
? Using the temperature range: 1~80 °C
? Use the humidity range: 1～100%RH
? Condensation test range: 94～100%RH
? Response speed
? Work under dc voltage
? High reliability

Model Number: HDS10
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HDS10 Dewing Sensor Product overview
HDS10 dewing sensor is feature stype switch element, Is not sensitive to low humidity and only to high humidity sensitive, can work under dc voltage, stable quality, reliability, reached the international advanced level.

HDS10 Dewing Sensor Applied The scope
Electronic, pharmaceutical, food, storage, tobacco, textile, meteorological industry.
Temperature and humidity table, humidifier, dehumidifier, air conditioner, microwave ovens and other products.

HDS10 Dewing Sensor Product highlights
? Response speed
? Strong ability to resist pollution
? Work under dc voltage
? High reliability
? Good stability and
? High humidity environment has a very high sensitivity

HDS10 Dewing Sensor Product parameters

The power supply voltage	0.8V DC (safety voltage)
Using the temperature range	1~80 °C
Use the humidity range	1～100%RH
Condensation test range	94～100%RH

HDS10 Dewing Sensor Features parameters

Project	Test conditions	Specifications
Resistance value	75%RH 25°C	10KΩ Max
	93%RH 25°C	70KΩ Max
	100%RH 60°C	200KΩ Max
Response speed	25°C, 60%RH → 60°C, 100%RH	Less than 5 seconds
Temperature cycle	-40°C, 30 minutes ~ 85°C, 30 minutes 5 cycle Relative humidity Resistance value
Place	The high temperature 85°C, 2000 hours
	Low temperature -40°C, 2000 hours
	Low temperature 40°C, 5%RH, 2000 hours
	The high temperature 40°C, 90~95%RH, 2000 hours 25℃ 75%RH 20KΩ Max
High humidity load	40°C, 90~95%RH, DC 0.8V 2000 hours 25°C 93%RH 90~100 KΩ
Condensation cycle	25°C, 60%RH, 57 minutes 60°C	>100KΩ
	25°C, 100%RH, 3 minutes 2000 time 100%RH	>100KΩ
