Product Specification

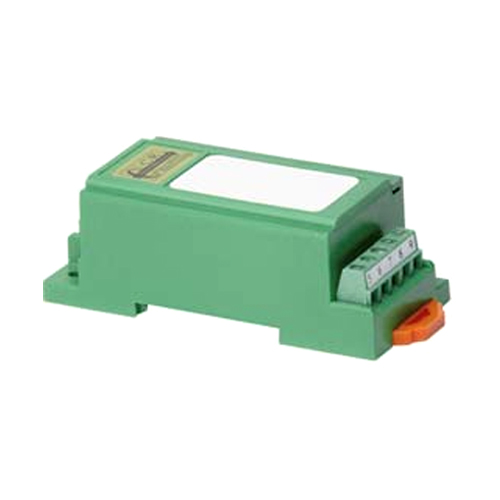

CR5310 DC Voltage Transducers and Transmitters are designed to provide an output DC signal that is proportional to the input DC voltage. These devices are especially suited for applications with a current shunt to monitor DC current.

CR5310 DC Voltage Transducer Features
? Outputs isolated from inputs
? DIN rail or panel mount
? Connection diagram printed on case
? 0 - 5 VDC output

CR5310 DC Voltage Transducer Specifications
? Response Time: 250 ms
? Operating Temperature: 0°C to +50°C
? MTBF: Greater than 100 K hours
? Insulation Voltage: 2500 VDC
? Supply Voltage: 24 VDC
? Frequency Range: DC
? Thermal Drift: 500 PPM/°C
? Output Load: 2 KΩ or Greater
? asic Accuracy: 1.0%

CR5310 DC Voltage Transducer Applications
? Mobile applications
? Power Supply over/under sensing
? Power sensing
? Battery chargers and systems

CR5310 DC Voltage Transducer PART NUMBERS
