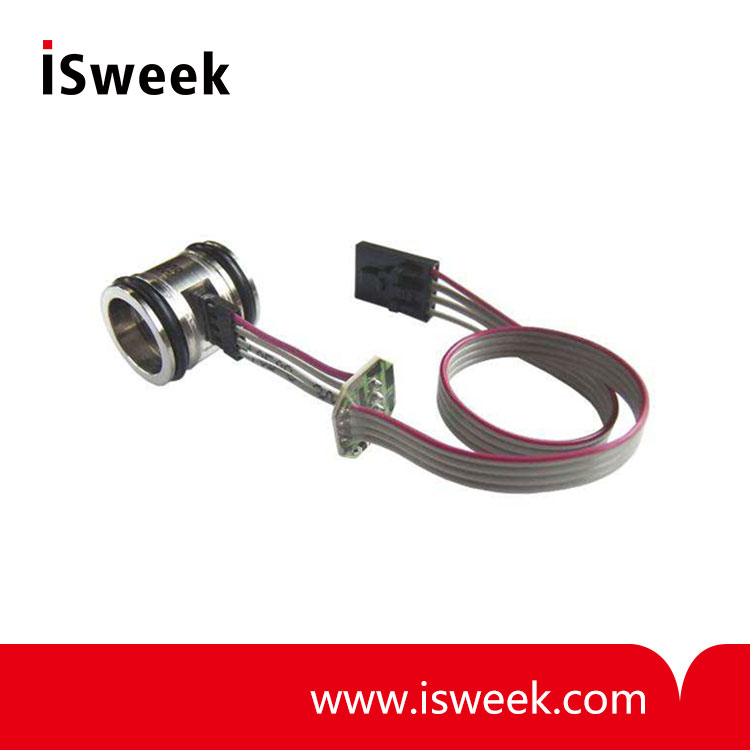

Constant Voltage With Cable Differential Pressure Sensor - MEAS DP86CV

? 316L SS
? Wet/Wet Differential
? Low Pressure
? 0 - 100mV Output
? ?Up to -40℃ to +125℃ Operating Range
? ?Up to ±0.1% Pressure Non Linearity
? ?Solid State Reliability
? ?Low Pressure

Model Number: MEAS DP86CV
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DP86
Constant Voltage with Cable

DP86CV Differential Pressure Sensor Specifications
? 316L SS
? Wet/Wet Differential
? Low Pressure
? 0 - 100mV Output

The DP86 constant voltage with cable differential pressure sensor is a double-sided, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The DP86 constant voltage with cable is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the two 316L stainless steel diaphragms to a single sensing element.

The DP86 constant voltage with cable is designed for high performance, low pressure applications where differential pressure measurement is required. The stainless steel package makes it suitable for use in liquids and corrosive environments.

Please refer to the DP86, uncompensated, non-silicone oil, constant current and constant voltage (fittings and cable design) for more information on different features of the DP86

DP86CV Differential Pressure Sensor Features
? O-Ring Mount
? Up to -40°C to +125°C Operating Range
? Up to ±0.1% Pressure Non Linearity
? Solid State Reliability
? Low Pressure

DP86CV Differential Pressure Sensor Applications
? Level Controls
? Tank Level Measurement
? OEM Equipment
? Corrosive Fluids and Gas Measurement Systems
? Flow Measurements

DP86CV Differential Pressure Sensor Performance Specifications
Supply Voltage: 10Vdc
Ambient Temperature: 25°C (unless otherwise specified)

Parameters	≤005PSI			≥015PSI			Units	Notes
Parameters	Min	Typ	Max	Min	Typ	Max	Units	Notes
Span	1psi: 77, 80, 83 5psi: 98, 100, 102			90	100	101	mV
Zero Pressure Output	-2.0	2	2.0	-1.0	0	1.0	mV	1
Pressure Non Linearity	1psi: -0.30 to 0.30 5psi: -0.20 to 0.20			-0.10		0.10	%Span	2
Pressure Hysteresis	-0.10	±0.02	0.10	-0.05	±0.02	0.05	%Span
Repeatability		±0.02			±0.02		%Span
Accuracy RMS of NL,HY,RP		±0.6	±1.0		±0.6	±1.0	%Span
Input Resistance	5500	9000	12500	5500	9000	12500	?
Output Resistance	4000		30000	4000		25000	?
Temperature Error – Span	-1.5		1.5	-1.0		1.0	%Span	3
Temperature Error – Offset	-2.5		2.5	-1.0		1.0	%Span	3
Thermal Hysteresis – Span	-0.25	±0.05	0.25	-0.25	±0.05	0.25	%Span	3
Thermal Hysteresis – Offset	-0.25	±0.05	0.25	-0.25	±0.05	0.25	%Span	3
Long Term Stability – Span		±0.10			±0.10		%Span/Year
Long Term Stability – Offset		±0.25			±0.10		%Span/Year
Line (Common Mode) Pressure			1000			1000	psi
Line Pressure Effect on Zero	1psi: 4.0 Max 5psi: 0.8 Max					0.5	%Span/1Kpsi
Supply Voltage		10	14		10	14	V	4
Output Load Resistance	5			5			M?	5
Insulation Resistance (50Vdc)	50			50			M?	6
Output Noise (10Hz to 1KHz)		1.0			1.0		uV p-p
Response Time (10% to 90%)		0.1			0.1		ms
Pressure Overload	1psi: 10X Max 5psi: 3X Max					3X	Rated	7
Pressure Burst	1psi: 12X Max 5psi: 4X Max					4X	Rated	7
Compensated Temperature	1psi: 0°C to 50°C 5psi: 0°C to 70°C			-20		+85	oC
Operating Temperature	1psi: -40°C to +85°C 5psi: -40°C to +125°C			-40		+125	oC	8
Storage Temperature	-40		+125	-40		+125	oC	8
Voltage Breakdown	500V rms @ 50Hz, Leakage Current < 1mA
Shock	50g, 1msec half sine shock per MIL-STD-202G, Method 213B, Condition A
Vibration	±20g MIL-STD 810C, Procedure 514.2, Figure 514.2-2, Curve L
Media – Pressure Port	Liquids and gases compatible with 316/316L Stainless Steel

Notes
1. Measured at ambient.
2. Best fit straight line
3. Over the compensated temperature range with respect to 25°C.
4. Guarantees output/input ratiometricity.
5. Load resistance to reduce measurement errors due to output loading.
6. Between case and sensing element.
7. For "H" (high-end) port, rated or 1000psi whichever is less. For "L" (low-end) port rated or 150psi whichever is less. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer.
8. Maximum temperature range for product with standard cable and connector is -20°C to +105°C.

DP86CV Differential Pressure Sensor Ordering Information
