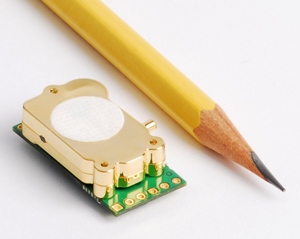

CO2 Sensor Module - T6713

?A reliable sensor design based on 20 years of engineering and manufacturing expertise.
?Flexible CO2 sensor platform designed to interact with other microprocessor devices.
?Small compact design allowing simple?product integration.?

Model Number: T6713
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CO₂ Sensor Module（Telaire T6713 Series）：??

Telaire T6713 Series is ideal for applications where Carbon Dioxide（CO₂）levels need to be measured and controlled for indoor air quality and energy saving applications, such as demand control ventilation.?

All units are factory-calibrated to measure CO₂ concentration levels up to 5000 ppm.?

CO₂ Sensor Module（Telaire T6713 Series）Features：

?An affordable gas sensing solution for OEMs.?

?Eliminates the need for calibration in most applications with Telaire's patented ABC Logic^TM software. Lifetime calibration warranty.?

?A reliable sensor design based on 20 years of engineering and manufacturing expertise.

?Flexible CO₂ sensor platform designed to interact with other microprocessor devices.

?Small compact design allowing simple?product integration.?

CO₂ Sensor Module（Telaire T6713 Series）Specifications：

Method		Non Dispersive Infrared (NDIR), gold plated optics, diffusion sampling (with Telaire's Patented ABC Logic Self Calibrated Algorithm)?
Measurement Range^（²^）		0 to 5000 ppm
Dimensions		1.18 in X 0.61 in X 0.34 in (30 mm X 15.6 mm X 8.6 mm)
Accuracy^（¹^）（⁵^）		400-5000 ppm+/-30ppm±3% of reading 400-2000 ppm+/-25 ppm±3% of reading?
Temperature Dependence		5 ppm per℃ or 0.5% of the reading per℃, whichever is greater
Stability		< 2% of FS over life of sensor (15 years typical)
Pressure Dependence		0.13% of reading per mm Hg
Calibration Interval		Not required
Response Time		< 3 minutes for 90% step change typical
Signal Update		Every 5 seconds
Warm Up Time		? < 2 minutes (operational) ? 10 minutes (maximum accuracy)
Operating Conditions		? 14°F to 140°F (-10℃ to 60℃) ? 0 to 95% RH, non-condensing
Storage Conditions		-22°F to 158°F (-30℃ to 70℃)
Output	Digital^（³^）	I²C slave up to 100kHz? UART@ 19200 Baud w/Modbus support
	PWM Output Mode	Two options: ? Cycle period 1002 ms(-1Hz) ? 40 us (25kHz)?
	Power Supply Requirements^（⁴^）	? 4.5-5.5 VDC ? Peak200mA（155mAtypical） ? Average 25mA（20mAtypical）
	Interface Connections	Designed for six (6) pin male header with 0.1 in（2.54 mm）spacing.Header not included.
