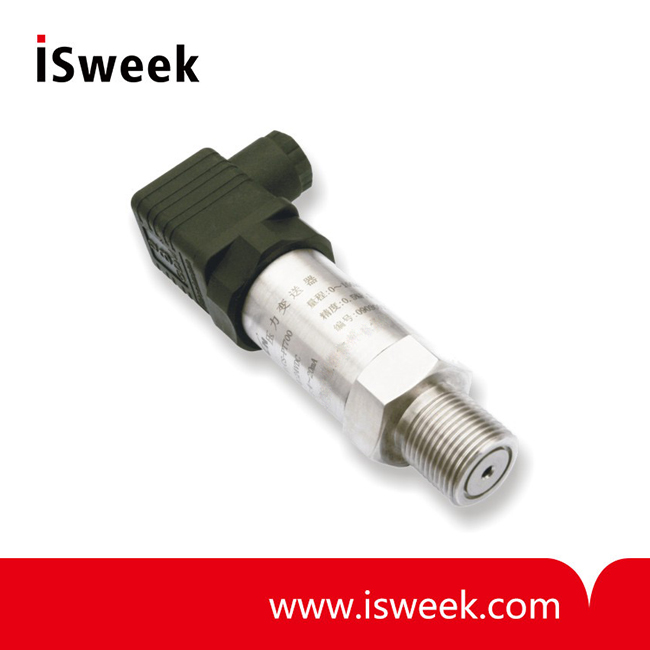

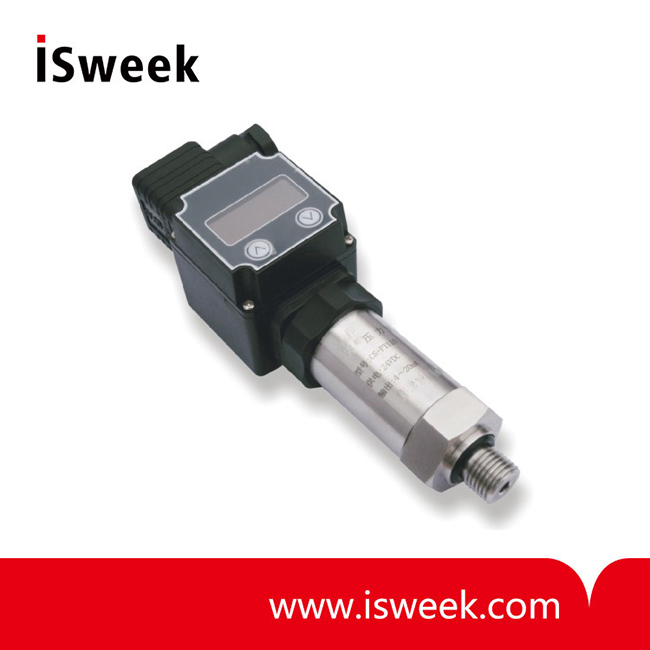

Ceramic Piezoresistive Pressure Transmitter - CS-PT1000 Series

? Measure Range: 0.5Mpa~60MPa
? Accuracy: ±0.5% F.S
? Operate Temprature: -40℃~85℃?
? Compensation Temprature: -10℃~70℃??
? Insulation: >100M ?@50V?
? Response Time: 10ms?
? Compliant: CE?
? AC/DC voltage powered

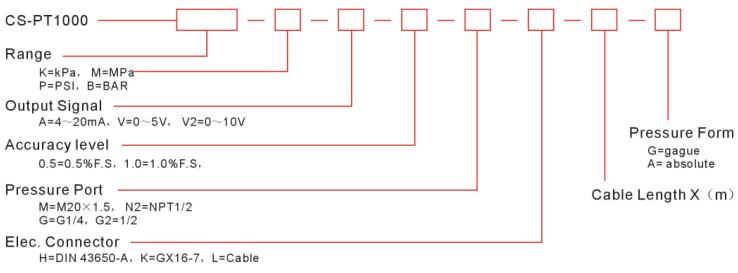

Model Number: CS-PT1000 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CS-PT1000 Series Ceramic Piezoresistive Pressure Transmitter

CS-PT1000 Series Pressure Transmitter Feature
? 0.5%F.S ~ 1%F.S accuracy
? OEM
? Ceramic sensor
? Multiple pressure ranges and signal output
? Multiple connectors and ports
? Nonpolar two-wire current output
? AC/DC voltage powered
? Intrinsically safe and CE approved

CS-PT1000 Series Pressure Transmitter Appliation
? Gas dispenser
? Refrigerator
? Hydraulic control
? Pressure instrument
? Automatic detection system
? Energy and water treatment
? Real-time custody for oil well

CS-PT1000 Series Pressure Transmitter Introduction
CS-PT1000 series of pressure transmitters are cost-effective products featuring mass production and low cost. They are widely used to detect the pressure of gas and liquid like water and nature gas.

The product are made of stainless steel, the pressure sensing elements are selected from well-known international brands,. Special circuits are adopted to adjust zero and full range conveniently. The products have been approved with CE, intrinsically safe, and explosion-proof certificates.

Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

CS-PT1000 Series Pressure Transmitter Technical parameters

Parameters	Value			Note
Measure Range	0.5Mpa~60MPa			1MPa≈145PSI
Overload Pressure	1.5×RP(rated pressure)
Broken Pressure	2.5×RP(rated pressure)
Accuracy	±0.5% F.S ( MARS & PT300 series have higher accuracy)
Stabilty	Typical 0.25%F.S, Max 0.4%F.S
Operate Temprature	-40℃~85℃
Compensation Temprature	-10℃~70℃
Media Compatibility	Corrosive medium compatible with Cr18Ni9Ti, ceramics
Wire	Two-wire	Three-wire
Output Signal	4~20mA	0~5V	0~10V
Power Supply	12~30Vdc	10~30Vdc/ac	12~30Vdc/ac	dc/ac means dc and ac are all usable
Load Resistance	(U-10)/0.02(?)	>20k?
Insulation	>100M ?@50V
Elec. Connect	DIN43650, Shell protection IP65			Hirschmann Plug(S)
	GX16-7, Shell protection IP45			Quick Access Plug(K)
	Wire protection (Five), Shell protection IP68
Pressure Port	M20×1.5, G1/2, G1/4, NPT1/2, NPT1/4
Response Time	10ms
Pressure Form	Gauge G, Absolute A
Compliant	CE
EMC	EMI: EN50081-1/-2; EMS: EN50082-2
