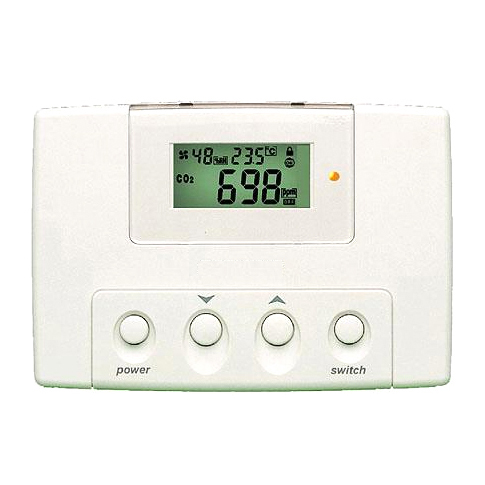

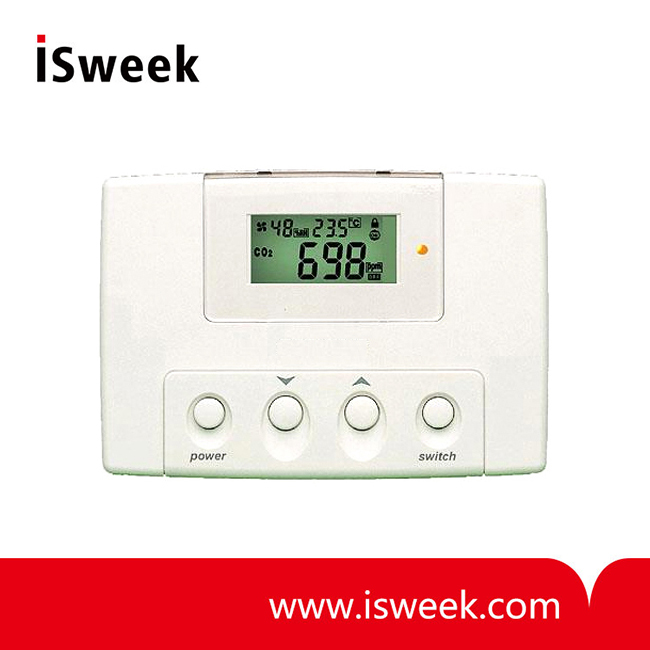

Carbon Dioxide Controller for Greenhouse Application - F2000IAQ-CO2-3003D/5003D

?? Gas detected: Carbon Dioxide (CO2)
?? Response Time: <2 minutes for 90% step change
?? CO2 measuring range: 0~5,000ppm, 0~20,000ppm (optional)
?? Temperature measuring range: -20~60°C(-4~140°F)
?? Humidity measuring range: 0~99%RH
?? Output resolution: 10Bit
? Operation temperature: 0~50°C(32~122°F)
?? Operation humidity?: 0~95%RH, non condensing?

Model Number: F2000IAQ-CO2-3003D/5003D
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CO2 Controller for Greenhouse or Similar Application
Model: F2000IAQ-CO2-3003D
CO2 + Temperature + Humidity Controller with the local Programmable Control

F2000IAQ-CO2-3003D Carbon Dioxide Controller?Features
??Especially designed for agriculture equipments such as greenhouses, food and vegetable storages.? Real-time detecting CO2 level, temperature? and? humidity? with? the? local programmable control.
??Wall mounting, LCD display
??Carbon dioxide sensor, temperature sensor and humidity sensor are internal. The three values can be apart set.
??Non-Dispersive Infrared Detector (NDIR) CO2 sensor, more than 10 years lifetime
??CO2 range: 0~5000ppm / 0~20000ppm / 0~50000ppm
??Special ABC Logic with patented Self Calibration Algorithm makes the CO2 sensor used up to more than 10 years
??Temperature setting range: 5~45°C?
? ?Humidity setting range: 5~95%RH
??Provid three relays outputs to control a CO2 generator, a? temperature device and a humidity devise or a ventilator.
??Special photosensitive sensor detection can make the working mode of the CO2 generator changeover automatically in day and night.
??Provide brightness adjustment range to make day/night limit setting by end users.
??RS-485 communication interface with 15KV antistatic protection makes the controller being connected with PC (option)
??Multiple functions, high performance, low price, make it praiseworthily.

F2000IAQ-CO2-3003D?Carbon Dioxide Controller?Application
F2000IAQ-CO2-3003D multiple controller is used to control CO2 level, temperature and humidity in order to offer right environment for plants growth or for foods storage.

It provides three dry contact outputs to control a carbon dioxide generator and a ventilator or other temperature/humidity equipments. It can provide RS485 communication with independent address to PC or other control systems.

It will be used below application:
1. Greenhouses, which include vegetable planting houses and flowers planting houses.
2. Modern hydroponics gardens
3. Other relevant field of agriculture
4. Keep food and vegetable on fresh

F2000IAQ-CO2-3003D?Carbon Dioxide Controller?Specifications

Gas detected	Carbon Dioxide (CO2)
Sensing element	Non-Dispersive Infrared Detector (NDIR) with more than 10 years lifetime
Temperature sensor	NTC
Humidity sensor?	HS series capacitive sensor
Temperature dependence	0.2% FS/°C
Temperature correction	Self compensation
Power supply	100VAC~240VAC or 24VAC, 50/60HZ±10%, selectable in order
Consumption	3.5 W max. ; 2.5 W avg.
Accuracy@25°C(77°F)	±40ppm + 3% of reading (0~5,000ppm) ±75ppm or 10% reading whichever is greater (0~20,000ppm)
Stability	<2% of FS over life of sensor (15 yr typical)
Calibration interval	ABC Logic Self Calibration Algorithm
Non linearity	<1% of FS
Pressure dependence	0.13% of reading per mm Hg
Altitude calibration	Programmable from 0-9,900m in 100m increments
Response Time	<2 minutes for 90% step change
Signal update	Every 2 seconds
Warm up time	24 hours (first time) 10 minutes (operation)
CO2 measuring range	0~5,000ppm 0~20,000ppm (optional)
CO2 setting & Display resolution	1ppm
Temperature measuring range	-20~60°C(-4~140°F)
Temperature setting range	5~45°C(41~113°F)
Humidity measuring range	0~99%RH
Humidity setting range	5~95%RH
Output resolution	10Bit
Relay output	Three ways dry contact outputs with programmable selection to control CO2, temperature, humidity Rated switching current: 2A(220VAC/30VDC), resistance load
Communication interface	RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection, 3 independent base address, max network node 64.
Flow rates	80 ~ 120 cc/min
Operation conditions	0~50°C(32~122°F); 0~95%RH, non condensing
Storage conditions	0~50°C(32~122°F); 0~90%RH
Weight	360g
Dimensions	130mm x 90mm x 40mm
Installment standard	65mm x 65mm or 2" x 4" wire box
Wiring standard	Wire section area <1.5mm²
Approval Standard	CE-Approval

F2000IAQ-CO2-3003D?Carbon Dioxide Controller?Models

Model	Description
F2000IAQ-CO2-3003D-(D)/(C)	CO2& temperature& humidity detection to control CO2 generator and ventilation, photosensitive sensor detection to control CO2 generator day/night working mode. Power supply: (D): 100~240VAC ?(C): 24VAC
F2000IAQ-CO2-5003D-(D)(C)	CO2&temperature&humidity detection to control CO2 generator and temperature & humidity devices, photosensitive sensor detection to control CO2 generator day/night working mode. RS485 communication interface. Power supply: (D): 100~240VAC ?(C): 24VAC
