Barometric Pressure Sensor with Stainless Steel Cap - MS5607-02BA03

? High resolution module, 20cm
? Fast conversion down to 1 ms
? Low power, 1 μA (standby < 0.15 μA)
? QFN package 5.0 x 3.0 x 1.0 mm3
? Supply voltage 1.8 to 3.6 V
? 24 bit ΔΣ ADC
? Operating range: 10 to 1200 mbar, -40 to +85 °C
? I2C and SPI interface up to 20 MHz

Model Number: MS5607-02BA03
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MS5607-02BA03 Barometric Pressure Sensor Description
The MS5607-02BA is a new generation of high resolution altimeter sensors with SPI and I2C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 20 cm. This barometric pressure sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.

The MS5607-02BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. Small dimensions of only 5.0 mm x 3.0 mm and a height of only 1.0 mm allow for integration in mobile devices.

This new barometric pressure sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

MS5607-02BA03 Barometric Pressure Sensor Features
? High resolution module, 20cm
? Fast conversion down to 1 ms
? Low power, 1 μA (standby < 0.15 μA)
? QFN package 5.0 x 3.0 x 1.0 mm 3
? Supply voltage 1.8 to 3.6 V
? Integrated digital pressure sensor (24 bit ΔΣ ADC)
? Operating range: 10 to 1200 mbar, -40 to +85 °C
? I2C and SPI interface up to 20 MHz
? No external components (Internal oscillator)
? Excellent long term stability

MS5607-02BA03 Barometric Pressure Sensor Applications
? Mobile altimeter/Barometer systems
? Bike computers
? Variometers
? Dataloggers
? Mobile phones / GPS

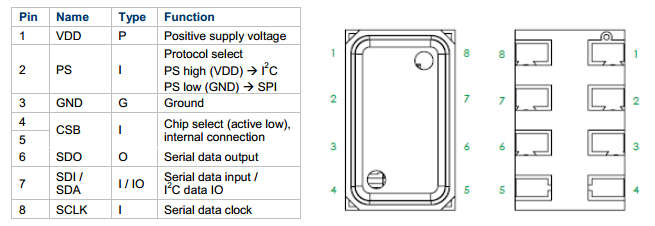

MS5607-02BA03 Barometric Pressure Sensor Technical Data

Sensor Performances (V_DD = 3 V)
Pressure	Min	Typ	Max	Unit
Range	10		1200	mbar
ADC	24			bit
Resolution (1)	0.13 / 0.084 / 0.054 / 0.036 / 0.024			mbar
Accuracy 25°C, 750 mbar	-1.5		+1.5	mbar
Error band, -20°C to + 85°C, 300 to 1100 mbar (2)	-2.5		+2.5	mbar
Response time (1)	0.5 / 1.1 / 2.1 / 4.1 / 8.22			ms
Long term stability		±1		mbar/yr
Temperature	Min	Typ	Max	Unit
Range	-40		+85	°C
Resolution		<0.01		°C
Accuracy	-0.8		+0.8	°C
Notes: (1) Oversampling Ratio: 256 / 512 / 1024 / 2048 / 4096 (2) With autozero at one pressure point
