BACnet Carbon Dioxide (CO2) Detector/Transmitter - G01-CO2-N10C/30C

? CO2 detection with 0~2000ppm range
? 0~5000ppm/0~50000ppm range selectable
? CO2 Accuracy: ±30ppm + 3% of reading @22°C
? Temperature dependence: 0.2% FS per °C
? Stability: <2% of FS over life of sensor
? Power supply: 24VAC/VDC±10%
? Consumption: 2.2 W max. ; 1.6 W avg.
? Operation temperature: 0~50°C (32~122°F)
?? Operation humidity?: 0~95%RH, non condensing

Model Number: G01-CO2-N10C/30C
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

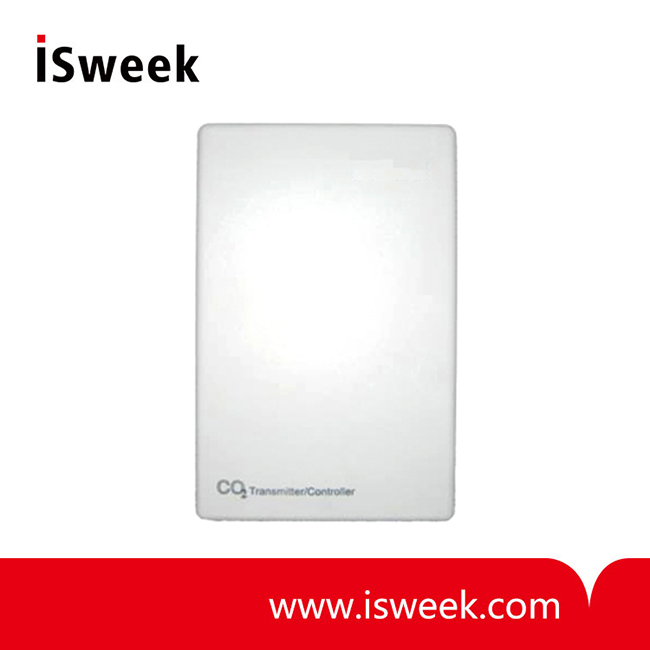

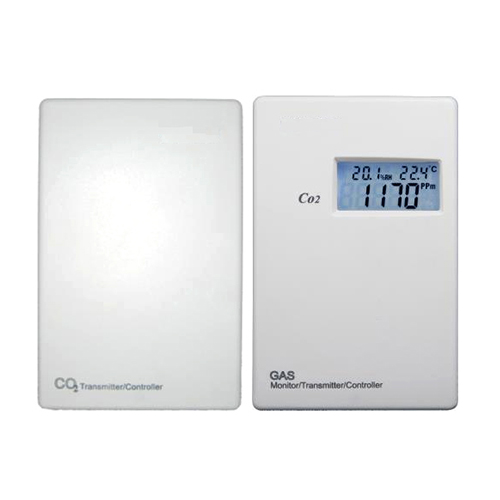

BACnet Carbon Dioxide (CO2) Detector/Transmitter
with Temperature and RH% Option
Model#: G01-CO2-N10C/30C

G01-CO2-N10C/30C Carbon Dioxide Detector/Transmitter Features
? BACnet communication
? CO2 detection with 0~2000ppm range
? 0~5000ppm/0~50000ppm range selectable
? NDIR infrared CO2 sensor with More than 10 years lifetime
? Patented self-calibration algorithm
? Optional temperature and humidity detection
? Provide up to 3xanalog linear outputs for measurements

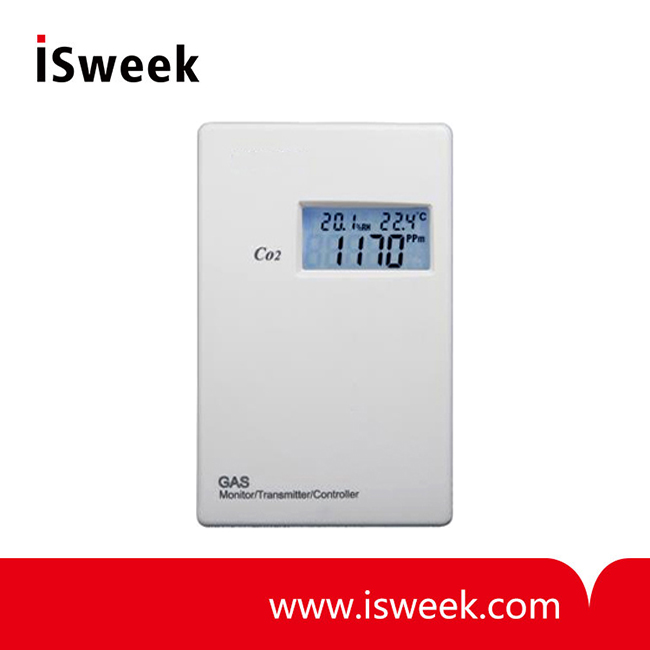

? Optional LCD display of CO2 and temperature and humidity
? 24VAC/VDC power supply
? EU standard and CE-approval

G01-CO2-N10C/30C Carbon Dioxide Detector/Transmitter Specifications

CO2 Measurement
Sensing element	Non-Dispersive Infrared Detector (NDIR)
CO2 range	0~2000ppm 0~5,000ppm/0~50,000ppm optional
CO2 Accuracy	±30ppm + 3% of reading @22°C(72°F)
Temperature dependence	0.2% FS per °C
Stability	<2% of FS over life of sensor (15 year typical)
Pressure dependence	0.13% of reading per mm Hg
Calibration	ABC Logic Self Calibration Algorithm
Response time	<2 minutes for 90% step change typical
Signal update	Every 2 seconds
Warm-up time	2 hours (first time) / 2 minutes (operation)
	Temperature	Humidity
Measuring range	0°C~50°C(32°F~122°F) (default)	0 -100%RH
Accuracy	±0.4°C (20°C~40°C)	±3%RH (20%-80%RH)
Display resolution	0.1°C	0.1%RH
Stability	<0.04°C/year	<0.5%RH/year
General Data
Power supply	24VAC/VDC±10%
Consumption	2.2 W max. ; 1.6 W avg.
Analog outputs	1~3 X analog outputs 0~10VDC(default) or 4~20mA (selectable by jumpers) 0~5VDC (selected at placing the order)
Operation conditions	0~50°C (32~122°F); 0~95%RH, non condensing
Storage conditions	10~50°C (50~122°F) 20~60%RH
Net Weight	250g
Dimensions	130mm(H) x 85mm(W) x 36.5mm(D)
Installation	wall mounting with 65mm x 65mm or 2" x 4" wire box
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Standard	CE-Approval

G01-CO2-N10C/30C Carbon Dioxide Detector/Transmitter Models Guide

G01-CO2-N X 0 C - Y 0 1 - U 02/05/50 - T/TH - Txx
X:	LCD or no LCD
	1- Without LCD, 24VAC/VDC power supply 3- LCD display, 24VAC/VDC power supply
C:	24VAC/VDC power supply
Y:	analog output quantity
	3- 3Xanalog outputs (for CO2, temperature, humidity) 2- 2Xanalog outputs (for CO2, temperature) 1- 1xanalog output (for CO2) 0- no analog output
U:	type of analog output
	V- 0~10VDC (default) A- 4~20mA V5- 0~5VDC (not be changed)
02/05/50:	CO2 range
	02- 0~2,000ppm 05- 0~5,000ppm 50- 0~50,000ppm
T/TH:	temperature option/ temperature and humidity option
Txx:	temperature scaling
	T05: 0°C~50°C(32°F~122°F) default (without the postfix indicates the default) T06: 0°C~60°C(32°F~140°F) T26: -20°C~60°C(-4°F~140°F)
