82 Compensated Pressure Sensor - MEAS 82C

? 316L SS Pressure Sensor
? 19mm Diameter Package
? 0 - 100mV Output
? O-Ring Mount/Threaded Process Fittings
? -40oC to +125oC Operating Temperature Range
? ±0.2% Pressure Non Linearity
? 1.0% Interchangeable Span (provided by gain set resistor)
? Solid State Reliability

Model Number: MEAS 82C
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

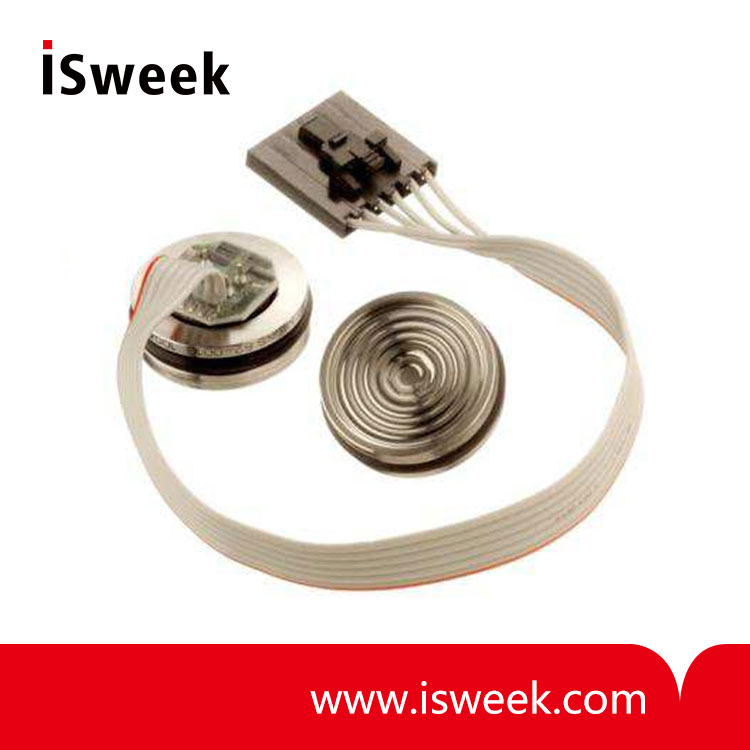

82 Compensated Pressure Sensor

The 82 compensated is a 19 mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 82 compensated can be configured for o-ring mounting or threaded process fittings and is designed for OEM applications where compatibility with corrosive media is required.

The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction. An additional laser-trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%.

Please refer to the 82 uncompensated and constant voltage datasheets for more information on different features of the 82.

MEAS 82C Pressure Sensor Features
? 316L SS Pressure Sensor
? 19mm Diameter Package
? 0 - 100mV Output
? Absolute and Gage
? Temperature Compensated
? O-Ring Mount/Threaded Process Fittings
? -40°C to +125°C OperatingTemperature Range
? ±0.2% Pressure Non Linearity
? 1.0% Interchangeable Span (provided by gain set resistor)
? Solid State Reliability

MEAS 82C Pressure Sensor Applications
? Medical Instruments
? Process Control
? Fresh & Waste Water Measurements
? Partial Vacuum Gas Measurement
? Pressure Transmitters
? Tank Level Systems (RV & Industrial)

MEAS 82C Pressure Sensor Performance Specifications
Supply Current: 1.5mA
Ambient Temperature: 25°C (unless otherwise specified)

Parameters	001PSI			005PSI			≥015PSI			Units	Notes
Parameters	Min	Typ	Max	Min	Typ	Max	Min	Typ	Max	Units	Notes
Span	50	100	150	50	100	150	75	100	150	mV	1
Zero Pressure Output	-2	0	2	-2	0	2	-1	0	1	mV
Pressure Non Linearity	-0.3		0.3	-0.2		0.2	-0.1		0.1	%Span	2
Pressure Hysteresis	-0.10	±0.02	0.10	-0.10	±0.02	0.10	-0.05	±0.02	0.05	%Span
Repeatability		±0.02			±0.02			±0.02		%Span
Input Resistance	2.5	5.0	6.5	2.5	5.0	6.5	3.8		5.8	K?
Output Resistance	4.0		7.0	4.0		7.0	4.0		6.0	K?
Thermal Hysteresis - Span	-0.25	±0.05	0.25	-0.25	±0.05	0.25	-0.25	±0.05	0.25	%Span	3
Thermal Hysteresis - Offset	-0.25	±0.05	0.25	-0.25	±0.05	0.25	-0.25	±0.05	0.25	%Span	3
Temperature Error - Span	-1.0		1.0	-1.0		1.0	-0.75		0.75	%Span	3
Temperature Error - Offset	-1.0		1.0	-1.0		1.0	-0.5		0.5	%Span	3, 9
Long Term Stability - Span		±0.10			±0.10			±0.10		%Span	4
Long Term Stability - Offset		±0.25			±0.25			±0.10		%Span	4
Supply Current	0.5	1.5	2.0	0.5	1.5	2.0	0.5	1.5	2.0	mA
Insulation Resistance (50Vdc)	50			50			50			M?	5
Output Noise (10Hz to 1KHz)		1			1			1		uV p-p
Response Time (10% to 90%)		0.1			0.1			0.1		ms
Pressure Overload			10x			3x			3x	Rated	6
Pressure Burst			12x			4x			4x	Rated
Operating Temperature	-20		+70	-20		+70	-40		+125	oC
Compensated Temperature	0		+50	0		+70	-20		+85	oC
Storage Temperature	-50		+125	-50		+125	-50		+125	oC	7
Media – Pressure Port	Liquids and Gases compatiblewith 316L StainlessSteel andBuna-N										8
Media – Reference Port	Compatible with Silicon, Pyrex, Gold,Fluorosilicone RTV and 316L Stainless Steel

Notes
1. Ratiometric to supply current.
2. Best fit straight line.
3. Maximum temperature error within the compensated temperature range with respect to 25°C.
4. Long term stability over a one year period with constant current and temperature.
5. Minimum resistance between case and pins.
6. 10 psi maximum for 1 psi devices.
7. Maximum temperature range for product with standard cable and connector is -20°C to +105°C.
8. Gage units not recommended for high vacuum applications. For high vacuum applications consult factory.
9. Temperature Error - Offset for 15psi is -0.75 to 0.75 and >15psi is -0.5 to 0.5.
