Product Specification

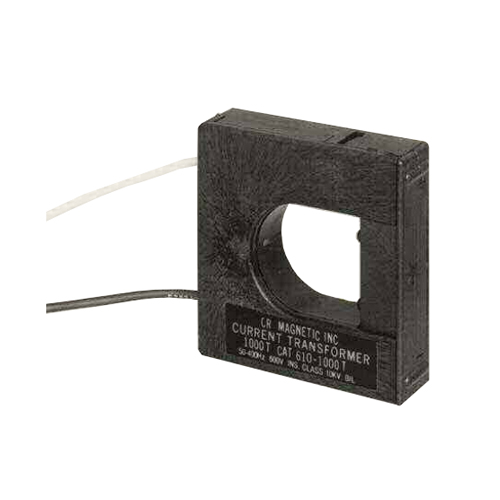

The 610-1000T Split Core Current Transformer is designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables. It incorporates a snap fit between the fixed and removable sections.

This transformer is intended for use with high input impedance devices that require signal voltages up to 5 VAC.

The output can be rectified and filtered for devices requiring DC input. The non-linearity and voltage drop of the rectifiers and filters must be considered in the choice of the loading impedance

610-1000T Split-core Current Transformer Features
? Construction: The core and windings are encased in UL approved plastic
? Flexible Leads: UL 1015 105° C, CSA approved, #18 AWG, 24" long unless otherwise specified

610-1000T Split-core Current Transformer Specifications
? Frequency: 50-400 Hz
? Insulation Level: 0.6 kV, BIL 10 kV full wave
? Continuous Thermal Current Rating Factor:
   330A at 30°C amb
   250A at 55°C amb
? Approximate Weight: 10 oz

610-1000T Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment having a High Input Impedance, eg. 14K ohms minimum
