Product Specification

The 600 & 601 Series Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

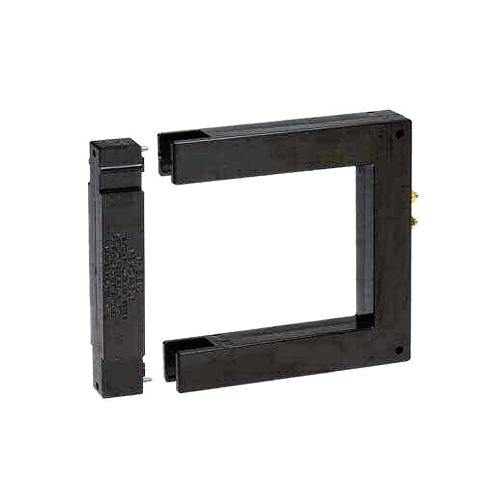

600 & 601 Series Split-core Current Transformer Caution
Proper safety precautions must be followed during installation by a trained electrician. Never install while bus is energized. The current transformer must have its secondary terminals short circuited or the burden connected, before energizing the primary circuit.

600 & 601 Series Split-core Current Transformer Features
Construction: The core and windings are encased in UL approved plastic
Terminals: 8-32 brass studs with one flatwasher and two regular nuts
Flexible Leads: UL 1015 105° C, CSA approved, #16 AWG, 24” long unless otherwise specified

600 & 601 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30° C amb 1.00 at 55° C amb
Approximate Weight: 1.5 lbs.

600 & 601 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation

600 & 601 Series Split-core Current Transformer PART NUMBERS
