Product Specification

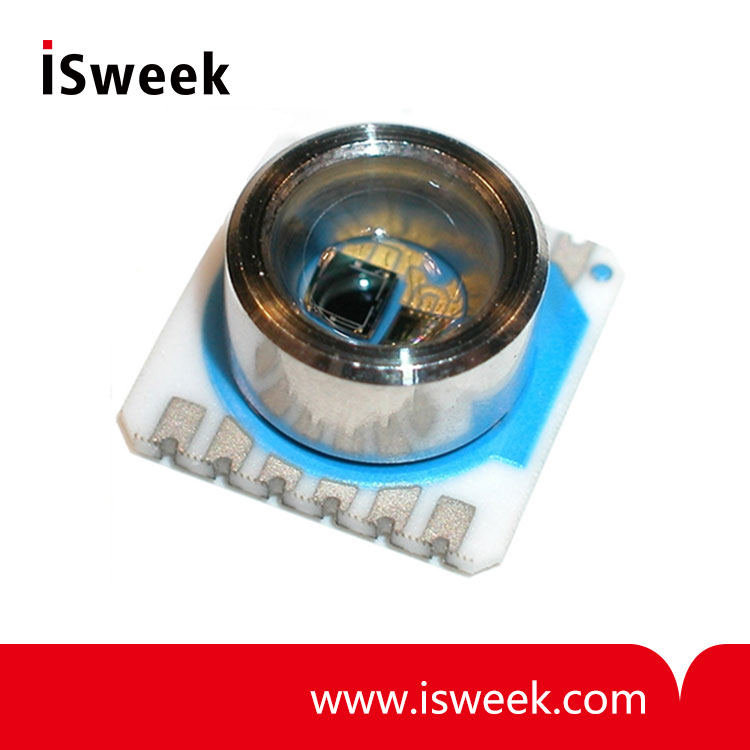

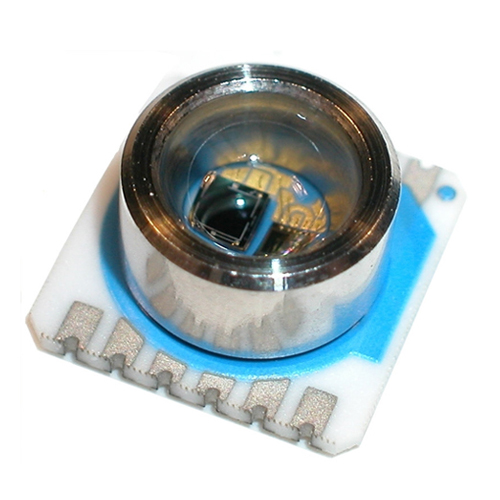

MS5535-30C 30 bar Pressure Sensor Module Specifications
? 0 - 30 bar absolute pressure range
? 6 coefficients for software compensation stored on-chip
? Piezoresistive silicon micromachined sensor
? Integrated miniature pressure sensor 9 x 9 mm
? 16 Bit ADC
? 3-wire serial interface
? 1 system clock line (32.768 kHz)
? Low voltage and low power consumption

MS5535-30C 30 bar Pressure Sensor Module Description
The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535-30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

MS5535-30C 30 bar Pressure Sensor Module Features
? Resolution 3.0 mBar
? Supply voltage 2.2V to 3.6V
? Low supply current < 5uA
? Standy current < 0.1μA
? -40°C to +125°C operation temperature
? 16 Bit ADC resolution pressure measurement and control systems

MS5535-30C 30 bar Pressure Sensor Module Field of application
? Mobile water depth measurement systems
? Diving computers and divers watches

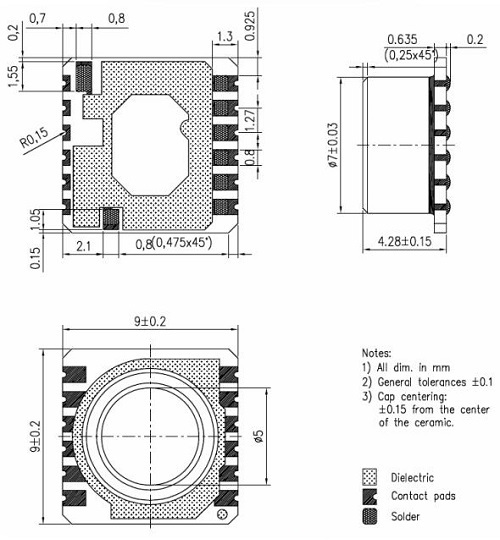

MS5535-30C 30 bar Pressure Sensor Module Technical Data
